Product Description

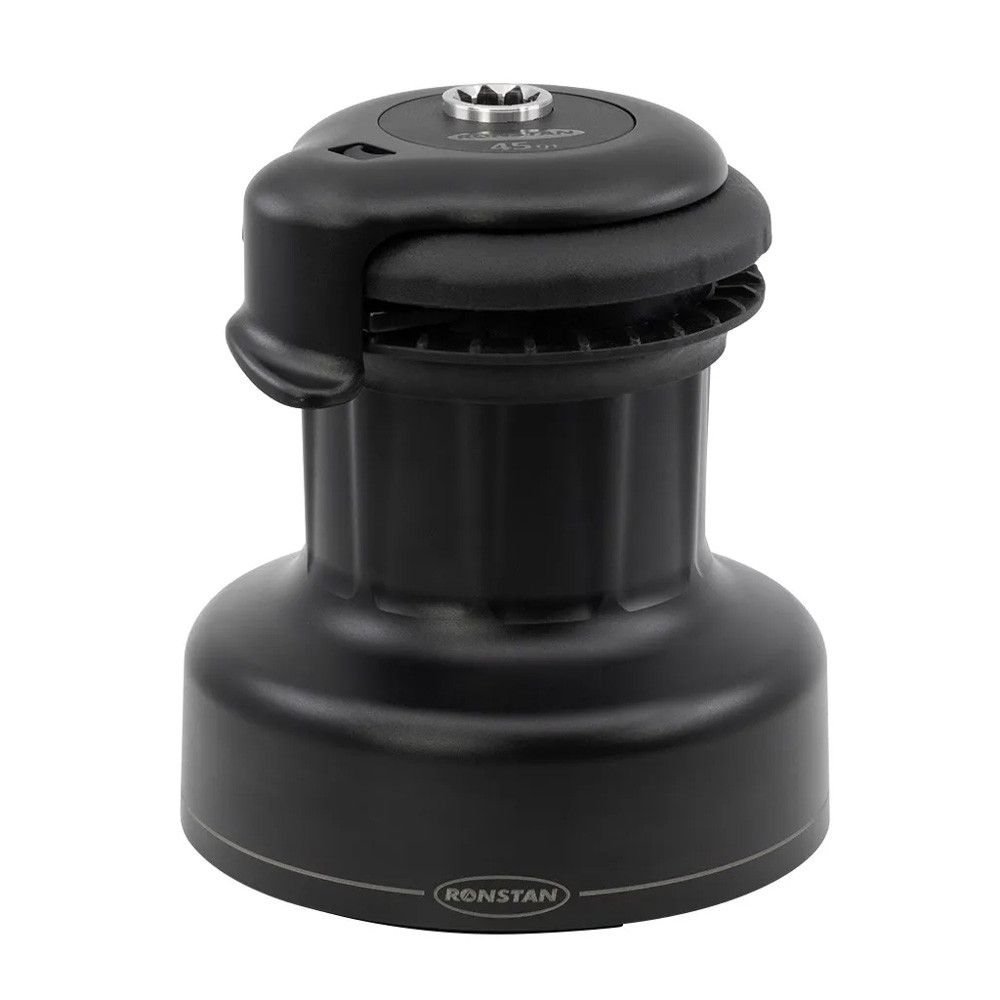

45QT Orbit Winch, 2-Speed, QuickTrim
Lightweight aluminium winch with QuickTrim™ self-tailer, 2 speeds, and Power Ribs™ for controlled line grip at all times.
Features:
- Sprung self-tailing jaws to accept 8-14mm line.
- QuickTrim™ patented self-tailing feature for rapid sail trim and smooth adjustment.
- Ball bearings carry the thrust loads, roller bearings carry the radial loads of the drum to minimise rotational friction.
- Proven gearing configuration.
- Power Rib™ ensures a controlled grip on the line at all times, whether trimming or easing. Minimal rope wear compared to more abrasive drum surface finishes.
- 45QT and 50QT available as three-speed models.
- Machined aluminium drum – stronger and lighter than traditional cast aluminium drums.
- Lightweight aluminium centre stem provides significant weight savings over traditional bronze stems.
- Low line entry due to gearing configuration geometry.
Specifications:
- Weight (lb): 11.91
- Max Pull (lb): 2980
- Gear ratio 1st speed: 3.0:1
- Gear ratio 2nd speed: 10.0:1
- Power ratio 1st speed: 13.4:1
- Power ratio 2nd speed: 45.5:1
