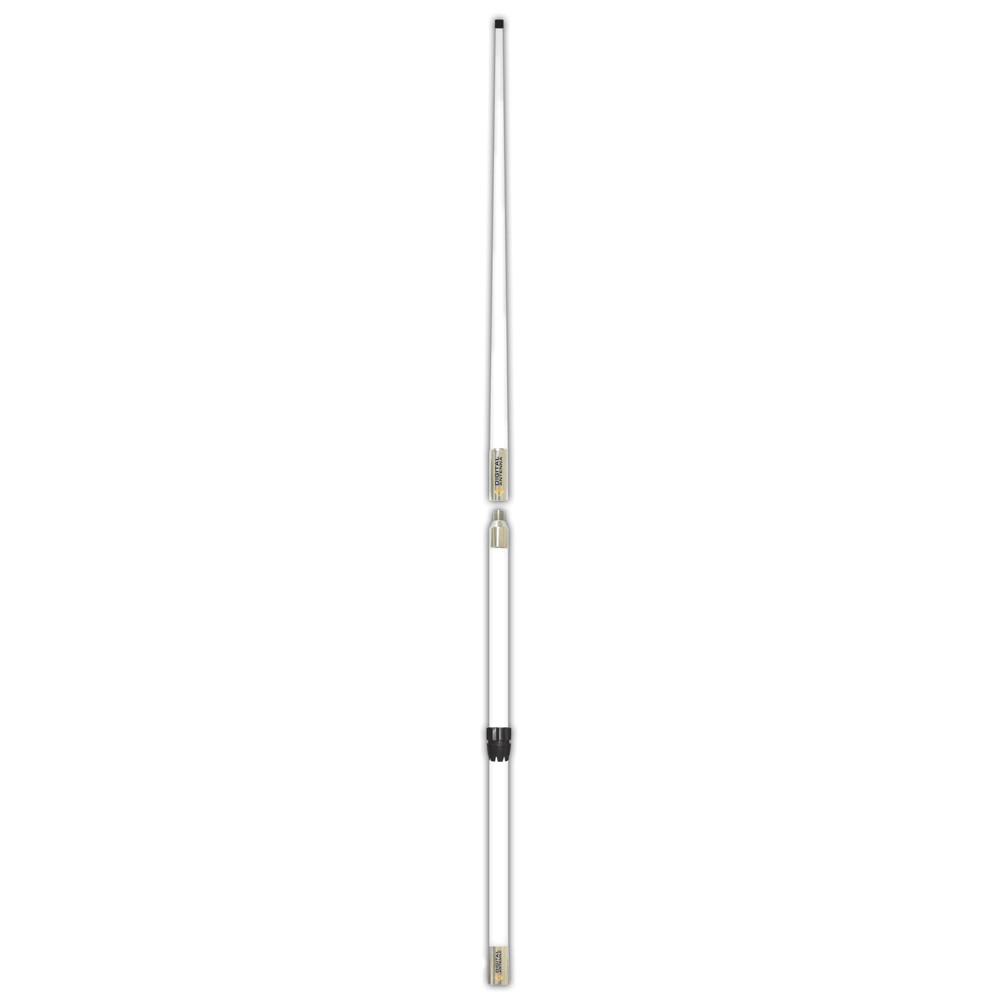

Digital Antenna 544-SSW-RS 16 Single Side Band Antenna w/RUPP Collar - White

SKU:
544-SSW-RS-DIG
|
UPC:
839494002227
$1,098.99
$1,555.73
(You save $456.74 )
(No reviews yet) Write a Review

544-SSW-RS Single Side Band Antenna w/RUPP Collar - White

** Designed to be used with RUPP Antenna Mounts **

When the range of a VHF radio just won’t do, offshore vessel operators choose Digital Antenna’s high performance Single Side Band antennas for exceptional communication over the entire HF frequency range. Heavy duty construction for use in the roughest seas, Digital Antenna SSB antennas are a popular choice for boaters when durability, performance and great looks are prerequisites. Available in 16’ or 24’ lengths to accommodate even the most pristine of motor yachts.

Features:

  • Powerful brass radiators
  • Soldered connections
  • Centering foam insulator
  • High gloss urethane finish
  • Mount: Standard 1”–14 threaded base
  • RF Termination: 1/4”- 20 stainless steel stud
  • Cable: Not included

Specifications:

  • Radiation Pattern: Omni-Directional
  • Max Input Power: 1000W
  • Exterior Finish: White, UV stable poly-urethane coating
  • Ferrule: 316 Stainless Steel
  • Installation: 1"-14 female threads
  • Wire (not included): Use 10-12 AWG high voltage insulated wire
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

  • Length (Inches): 190"
  • Ferrule Type: Stainless Steel
  • Construction: Fiberglass
  • Color: White
  • Antenna Band: SSB
  • Box Dimensions: 4"H x 4"W x 96"L WT: 10.65 lbs
  • UPC: 839494002227

Quick Guide (pdf)
Shipping Cost:
Calculated at Checkout
Width:
4.000 (in)
Height:
4.000 (in)
Depth:
96.000 (in)
