A sealed saltwater reel uses rubber contact gaskets and O-rings to physically block ocean water and sand from entering the bearings and gearbox, while a non-sealed reel relies on open or shielded components that turn with less friction but flood if submerged. That barrier stops corrosive brine during surf immersion, but it adds cranking resistance. Non-sealed reels spin freely but require disciplined freshwater rinsing.
We see anglers face this decision every week at our counter. Marketing labels like saltwater-ready often hide unshielded bearings that seize up after a single dunking. Understanding the mechanical differences between physical contact seals and open gears helps you buy tackle that matches your waters without paying for features you do not need.
How Salt Brine and Fine Sand Invade Reel Mechanics
Saltwater carries suspended quartz sand and dissolved minerals directly into reel assemblies. When seawater evaporates inside a reel housing, it leaves behind abrasive sodium chloride crystals. These crystals act like valve-grinding compound against brass gears and stainless steel bearing races. Intrusion happens quickly, and it follows a predictable mechanical path.
The Vulnerability of the Line Roller
The line roller bearing is almost always the first component to fail on an unsealed reel. Your braided line acts like a high-speed sponge, pulling gritty salt brine directly into the roller housing on every retrieve. As you crank against heavy currents, the line squeezes water into the micro-bearing. Once that bearing corrodes and freezes, the roller stops turning. Braided line then drags across stationary metal, grooving the roller and snapping under the weight of a fish.
Anti-Reverse Clutch Seizure
The next failure point is the one-way anti-reverse roller clutch sitting beneath the rotor. If an unsealed reel takes wave wash or sits in blowing spray, brine creeps past the main shaft. The needle bearings inside the anti-reverse clutch are small and vulnerable to flash rust. The moment you turn the handle backward and feel slipping or a gritty crunch, that clutch assembly is finished. In the surf, Stripers Online discussions (2023) documented how even brief drops into sandy wash cause unsealed roller clutches to fail before the tide turns.
Understanding Ingress Protection from Splash Deflection to IPX8
To pick the right platform from our stock of saltwater fishing reels, look past promotional terms and check the actual mechanical barrier protecting the gear case.

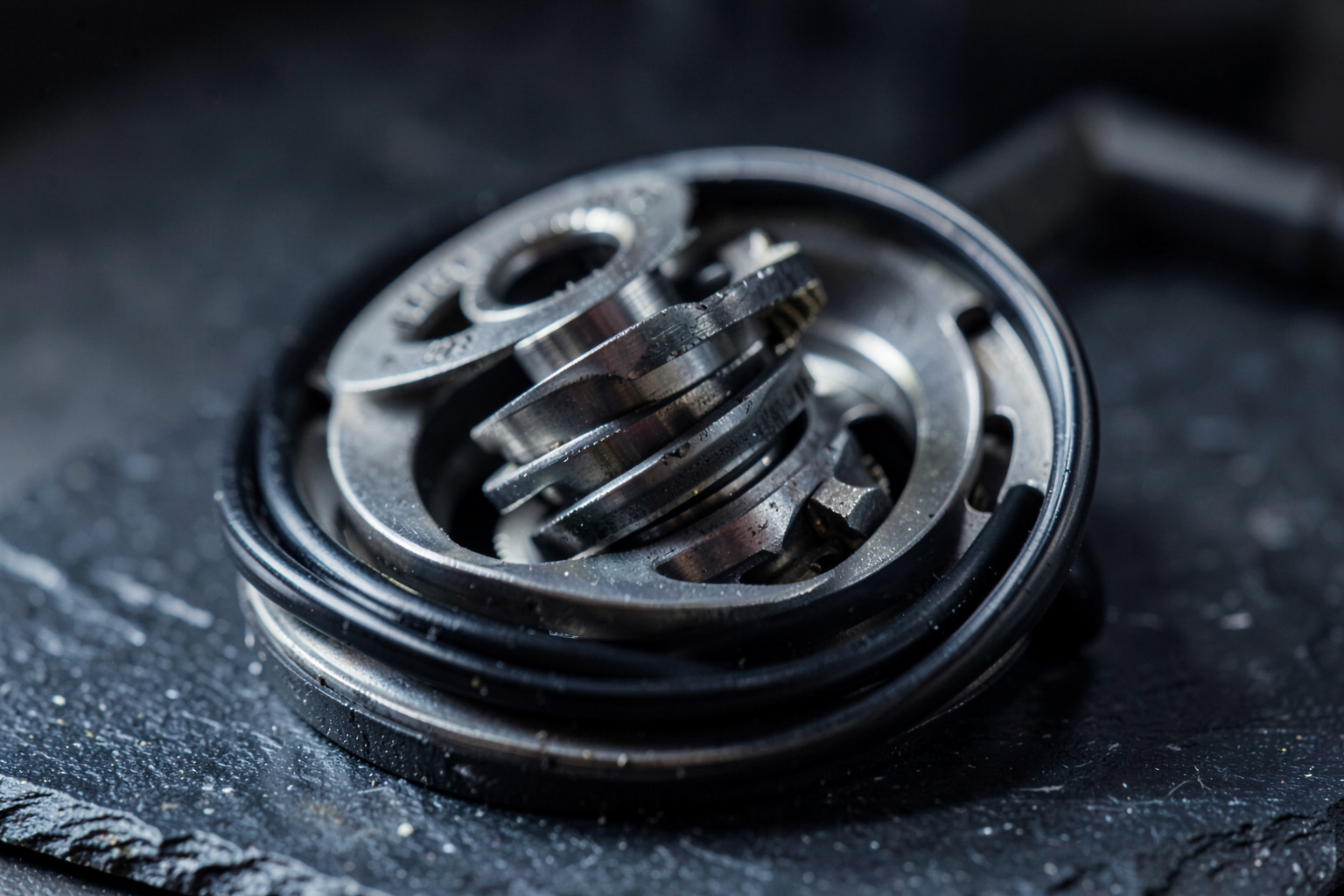

Shielded Bearings Versus True Contact Seals
Do not confuse metal-shielded bearings with true rubber contact seals. Stainless steel double-shielded bearings use a thin metal disc pressed into the outer race. This shield deflects floating sand grains and large grit while retaining grease, but it does not form a watertight barrier against liquid brine. True sealed bearings incorporate an elastomeric contact gasket tightly seated into the bearing race to physically exclude water. That physical contact adds measurable friction, which slows down free-spinning inertia compared to open bearings. Removing these rubber seals for servicing also risks permanently deforming them.
Interpreting Real-World IPX Ratings
Manufacturers use International Protection ratings to specify water resistance. Field tests compiled in the OnlySaltwaterFishing saltwater spinning reel guide (2025) show that an IPX5 rating protects against low-pressure water streams from any angle. An IPX5 reel easily handles boat spray, but dropping it into the ocean floods the housing. True surf immersion requires an IPX8 rating. This standard certifies that the reel body and spool assembly can endure continuous underwater submersion under pressure without leaking.

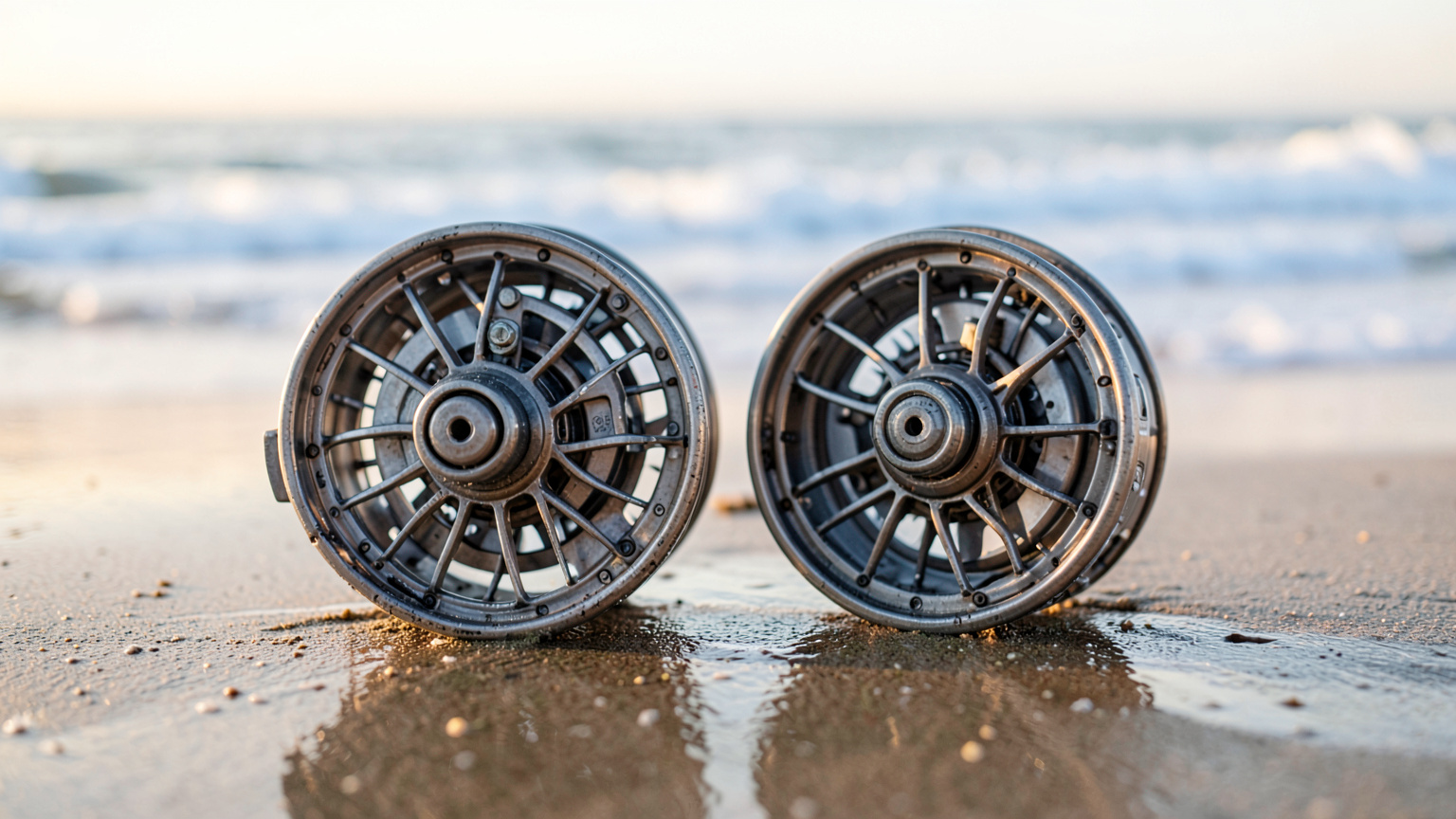

What Is the Difference Between a Sealed and Non-Sealed Saltwater Reel?
Evaluating sealed against unsealed tackle requires balancing water exclusion against cranking resistance.
| Performance Metric | Fully Sealed Reels (IPX6 to IPX8) | Non-Sealed and Splash-Resistant Reels |
|---|---|---|
| Water Intrusion Defense | Locks out breaking waves, sand wash, and full underwater submersion. | Deflects airborne mist and light spray; floods if submerged. |
| Rotational Cranking Feel | Noticeable handle resistance caused by contact seals and gaskets. | Effortless, free-spinning inertia with zero gasket drag. |
| Average Reel Weight | Heavier, running 400g to over 600g in 6000 and larger sizes. | Lighter, running 200g to 250g in inshore 2500 to 3000 sizes. |
| Post-Trip Maintenance | Gentle freshwater mist to clear dried external salt crystals. | Disciplined freshwater mist, line roller oiling, and periodic drying. |
| Acquisition Cost | Higher initial investment for machined housings and verified seals. | Moderate upfront cost across standard and mid-tier models. |
When a Fully Sealed Reel Is Non-Negotiable
A fully sealed reel is mandatory when your fishing style puts your gear underwater.
Wading Sandy Surf Bars and Wave Crests
If your fishing puts you out on an Atlantic sandbar where waves crest your wader belt, an unsealed reel will not survive the weekend. One quick dunk forces saltwater and abrasive sand into the side plates, turning internal lubricants into grinding paste. Submersion reels like the IPX8-rated models in our Accurate fishing reels catalog feature machined aluminum bodies with complete O-ring perimeter sealing. When water crashes over the spool, the gear case stays dry and the drag stack remains clean.
The Mechanical Cost of Cranking Resistance
Watertight sealing always requires mechanical trade-offs. Rubber contact seals physically contact moving shafts. Anyone who says an IPX8 reel turns as freely as an unsealed reel is ignoring basic friction physics. You feel resistance at the handle on every crank. When you throw bucktails into rough surf, that handle drag is the acceptable price for keeping ocean brine out of your main gear.
Why Light Inshore Anglers Often Prefer Unsealed Reels
Most boat anglers waste money on heavy, fully sealed reels when a lighter setup performs better all day long.
Weight Savings and Casting Balance on Open Skiffs
When you drift coastal bays or cast shoreline structure for puppy drum and speckled trout, you make hundreds of casts per tide. Light inshore reels in the 2500 to 3000 size range weigh between 200g and 250g. Adding heavy aluminum bodies and multi-point rubber seals adds weight that fatigues your wrist and forearm. Responsive tackle like our Quantum saltwater spinning reels focuses on light rotor dynamics and basic splash deflection. This balance lets you fish all day without unnecessary gear weight.
The Reliability of Classic Maintainable Architectures
Anglers on BassResource gear forums (2019) point out that older, unsealed designs remain reliable because their simple mechanics make them easy to rebuild. Workhorse reels like the classic Penn 704Z survive salt exposure because they lack delicate clutch bearings and can be packed with marine grease at home. If you practice basic post-trip cleaning, an unsealed reel with a sealed drag stack delivers better feedback and sensitivity than a stiffly gasketed reel.
Selecting the Right Reel Size for Inshore and Surf Casting
Matching reel size to your rod blank controls casting distance over a full tide.
- Inshore flats and tidal creeks: A 2500 to 3000 size spinning reel spooled with 10-pound to 15-pound braid is our standard choice. It weighs between 200g and 250g, provides 10 to 15 pounds of drag, and holds plenty of line for red drum.
- Surf and jetty casting: A 4000 to 5000 size reel pairs well with 2.7m to 3.0m surf rods, including our Shimano saltwater rods. The wider spool diameter cuts line friction during casts, helping you punch lures past breaking waves.
- Heavy trolling and offshore runs: Big-water casting and trolling require 6000 size reels and above, which weigh between 400g and over 600g to maintain rigidity under heavy drag pressures. For dedicated trolling rigs, read our guide on striper rod and reel setup choices to match your line and rod actions.
Post-Trip Maintenance Steps That Protect Your Investment
Never assume a sealed reel is maintenance-free. Dried salt crystals left on the main shaft and line roller will abrade rubber O-rings like sandpaper. Follow this washdown routine after every saltwater trip.

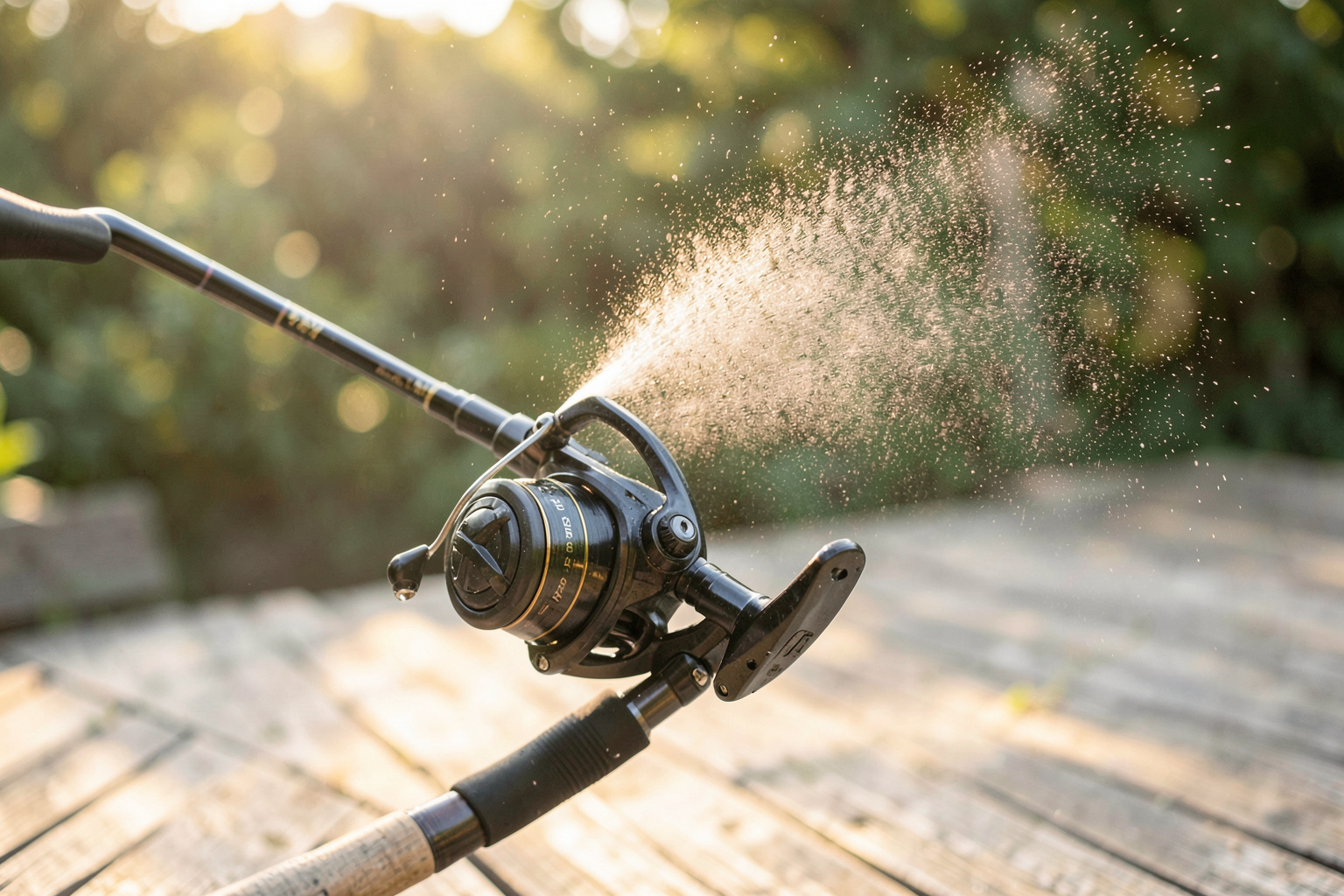

Low-Pressure Freshwater Mist Washdown
- Lock the drag knob down: Tighten the drag knob completely before fresh water touches the reel. This compresses the drag washers so rinse water cannot carry dissolved salt into the drag stack.
- Rinse with a gentle mist: Blasting a reel with a high-pressure garden hose ruins more internal bearings and gears every season than saltwater ever will. High pressure drives salt crystals past rubber seals and into the gearbox. Use a light mist or hold the reel under a slow sink tap.
- Dry the exterior: Wipe down the reel body with a clean towel. Rinsing away dried salt prevents pitting on aluminum surfaces.
Drag Washer Pressure Management
- Back off the drag knob: Loosen the drag completely once the reel dries. Leaving the drag compressed crushes felt and carbon fiber washers, flattening them out and causing the drag to slip or jerk under tension.
- Oil the pivot points: Place one drop of light reel oil on the line roller bearing and bail arm hinges on reels like our Shimano saltwater fishing reels. This keeps the line guide spinning freely for your next outing.
Order your tackle directly through our online store, or call our Annapolis shop at 1-888-810-7283 if you need help picking the right reel for your waters.
Frequently Asked Questions
Can you dunk a sealed saltwater reel underwater?
Only reels with an IPX8 immersion rating are built for continuous underwater submersion. Splash-resistant reels rated IPX5 only deflect boat spray and rain, and they will flood if dropped in the ocean. Check the certified rating on your specific model before letting it drop beneath the surf.
Why does a fully sealed saltwater reel feel stiffer when turning the handle?
Rubber contact seals press directly against rotating metal parts to block ocean brine. This mechanical contact creates rotational friction on every turn. That resistance is the physical price you pay for keeping water out of your gears.
What size reel is best for inshore saltwater fishing?
A 2500 to 3000 size spinning reel weighing between 200g and 250g is ideal for inshore casting. It holds enough 10-pound to 15-pound braided line for redfish and speckled trout without wearing out your wrist over hundreds of casts. Match it with a 7-foot medium-action rod for the cleanest balance.
Can I use an unsealed reel in saltwater if I clean it every trip?
Yes. Unsealed reels last for years on open skiffs as long as you keep them out of the water. Rinse them with a gentle freshwater mist after every trip and keep the line roller bearing oiled.
Where do unsealed saltwater reels fail first?
The line roller bearing fails first because braided line carries gritty salt brine directly into the roller on every retrieve. The second failure point is the anti-reverse roller clutch under the rotor, which slips if water splashes down the main shaft.
