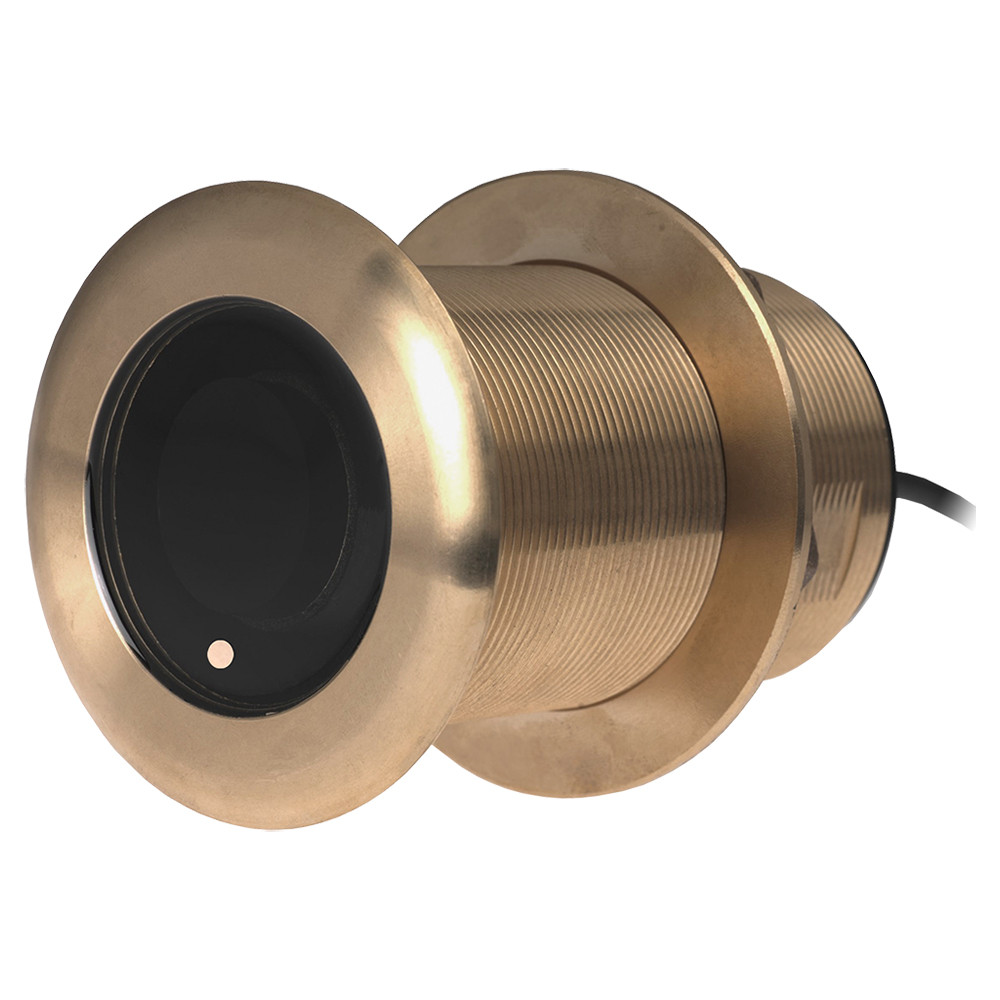

B60-20-FISO 20° Spade Connector for Raymarine ST30, 40, 60, i40, i50 & i60
The B60-20° provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted for built-in, deadrise compensation. The resulting vertical beam gives excellent echo returns for more-accurate depth readings. The nearly-flush housing minimizes drag with only 5 mm (3/16") extending outside of the hull.
Features:
- Depth ONLY
- Mid-Performance
- Engineered for center-console and trailered boats
- Low-profile protrusion below the hull - no affect on your boats running performance
- Boat Size: Up to 8 m (25’)
- 50/200 kHz
- 600 W RMS
- Usable Shaft Length: 68.5 mm (2.70”)
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications:
- Mounting Style: Thru-Hull
- Box Dimensions: 2"H x 4"W x 8"L WT: 1.5 lbs
