Tigress XD Top Mount

Tigress XD Top Mount

SKU:
88850-TIG
|
UPC:
661033888500
$1,243.99
$1,666.99
(You save $423.00 )
(No reviews yet) Write a Review

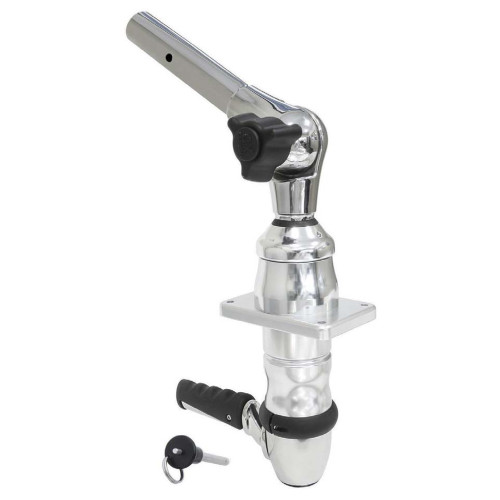

XD Top Mount

For use on sport fishing boats up to 40 feet.

Features:

  • Unique invertible Tigress handle design for use on both soft and hard tops over 2” thick
  • Accepts all Tigress XD 1-1/2” butt diameter outriggers and XD 1-1/8” butts using adapter
  • Fits Tigress and other industry standard 4” x 6” mounting plates (four 5/16” diameter fasteners)
  • Extreme-duty 316 Stainless Steel and anodized aluminum and sealed construction with UV protection
  • 24 adjustable/locking system positions (15° increments) featuring Tigress XD 316 Stainless Steel design
  • 19 upper-arm angle/locking positions (10° increments) using Tigress XD 316 Stainless Steel detent design with ambidextrous horizontal stops
  • Tigress XD 316 Stainless Steel detent design with ambidextrous horizontal stops
  • Large 3-lobe UV ergonomic knob with integral detent feature when changing outrigger elevation
  • Ergonomic 316 Stainless Steel mirror-polished lever design with inverting ability for extra hand clearance on the thickest tops.
  • User friendly underside lever actuation, with 8 optional indexable set-up positions
  • Standard ¼” diameter locking stainless steel push-in-pin for outriggers
  • Fits through all standard 3” diameter mounting plates and hard top holes
  • Sold as pair
  • 3-Year Limited Warranty

Shipping Cost:
Calculated at Checkout
Width:
19.000 (in)
Height:
8.000 (in)
Depth:
24.000 (in)
