TACO 13-1/8" x 10" Electric Seat Slide

SKU:
M20-1013E-TAC
|
UPC:
631097090935
$624.99
$884.99
(You save $260.00 )
(No reviews yet) Write a Review

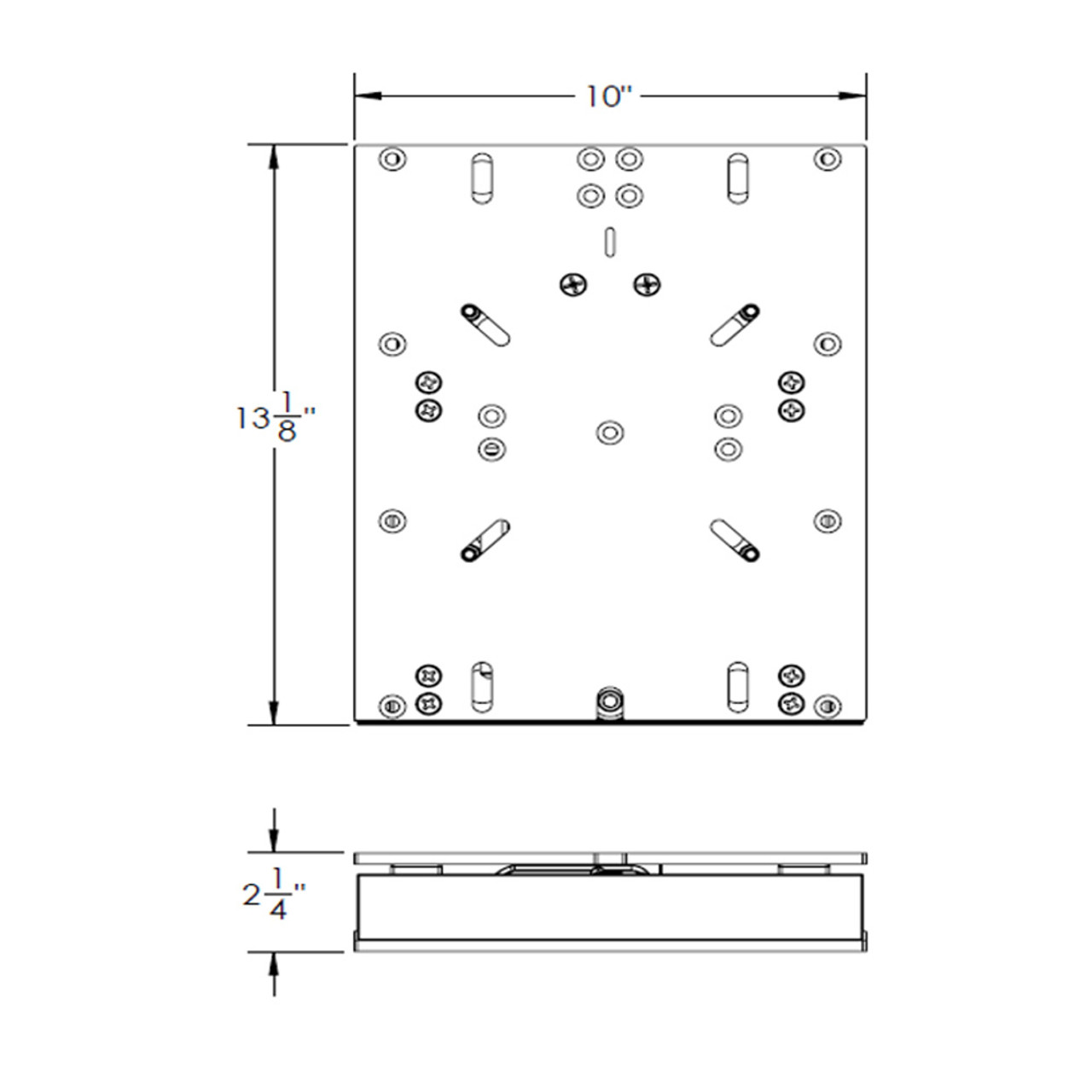

13-1/8" x 10" Electric Seat Slide

Perfect for seats 23" to 28" wide, this 13-1/8" X 10" electric seat slide travels up to 5" and can be stopped anywhere between its fully extended and retracted positions.

Features:

  • Ideal for seats 23" to 28"
  • Features 5" of travel distance (stroke length)
  • Water-resistant IP66 rating
  • Meets H31 testing standards for seat applications
  • Precision-machined 6000-series aluminum chassis
  • Rail/Linear Glide systems are self-lubricating, dirt-resistant, quiet, corrosion-free, lightweight and shock resistant
  • Low profile with secure fit with universal mounting bolt pattern on both pedestal and box applications
  • Quite an operation ≤ 58dB
  • Electric actuator
  • Self-locking at any given position (at rated loads)
  • No racking in any direction due to precision tolerances in the track/glide system
  • All electric seat slides and components are acid-etched clear anodized
  • Made in the USA
  • 3-year limited warranty

Specifications:

  • 12V DC 9 AMP Max current
  • Max load 3500N
  • Push and pull force of 1500N
  • IP66 Rated
  • Speed 13.5 mm/Sec @ 1500N
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.


Brochure (pdf)
Shipping Cost:
Calculated at Checkout
Width:
11.000 (in)
Height:
4.000 (in)
Depth:
15.000 (in)
