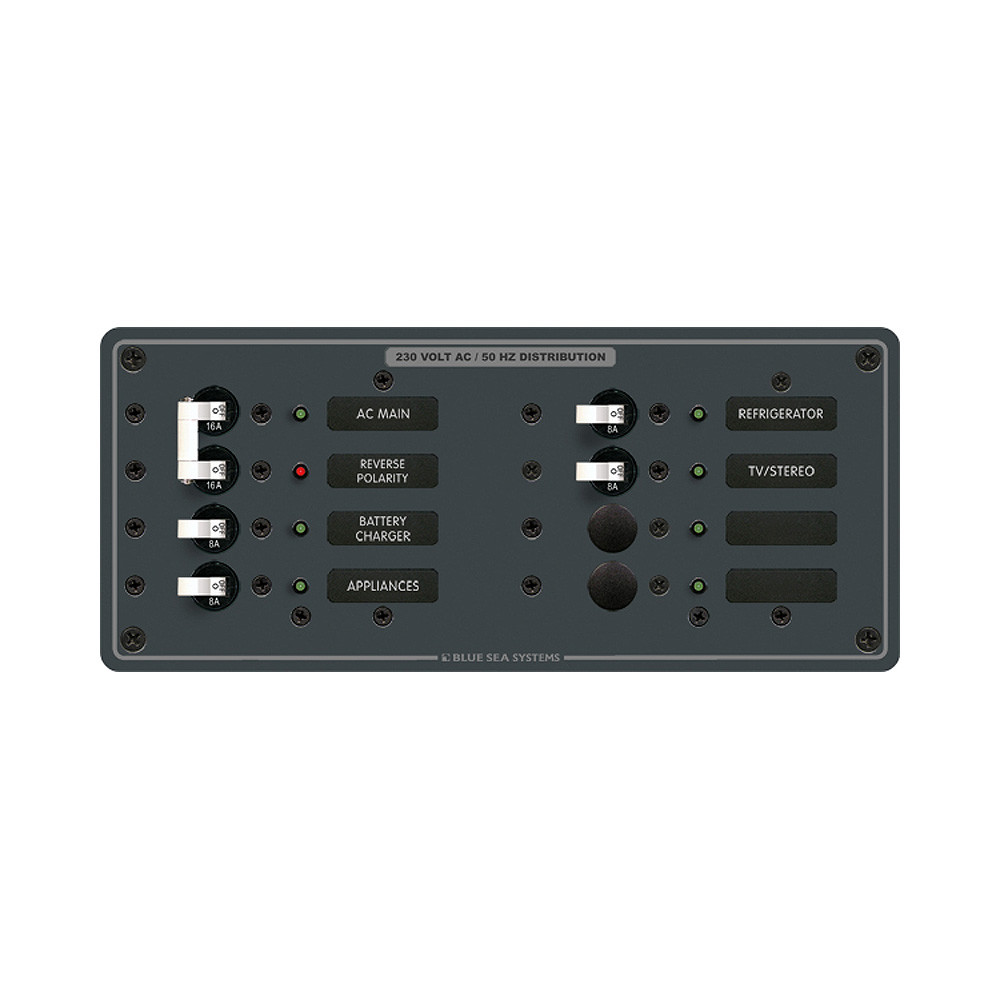

AC Main + 6 Positions
Color: White
16A Double: 1
8A Single: 8
- Red reverse polarity indicating LED
- All hot, neutral and safety ground buses installed, fully pre-wired
- All circuit label positions are backlit on standard panels - No kit required
- "ON" indicating LEDs installed in all circuit positions
- Maximum panel amperage - 50 Amperes
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Voltage: 230v
- AC/DC: AC
- Max Breaker Quantity: 6
- Box Dimensions: 5"H x 9"W x 12"L WT: 3 lbs
- UPC: 632085085124
Quick Guide (pdf)Owner's Manual (pdf)
