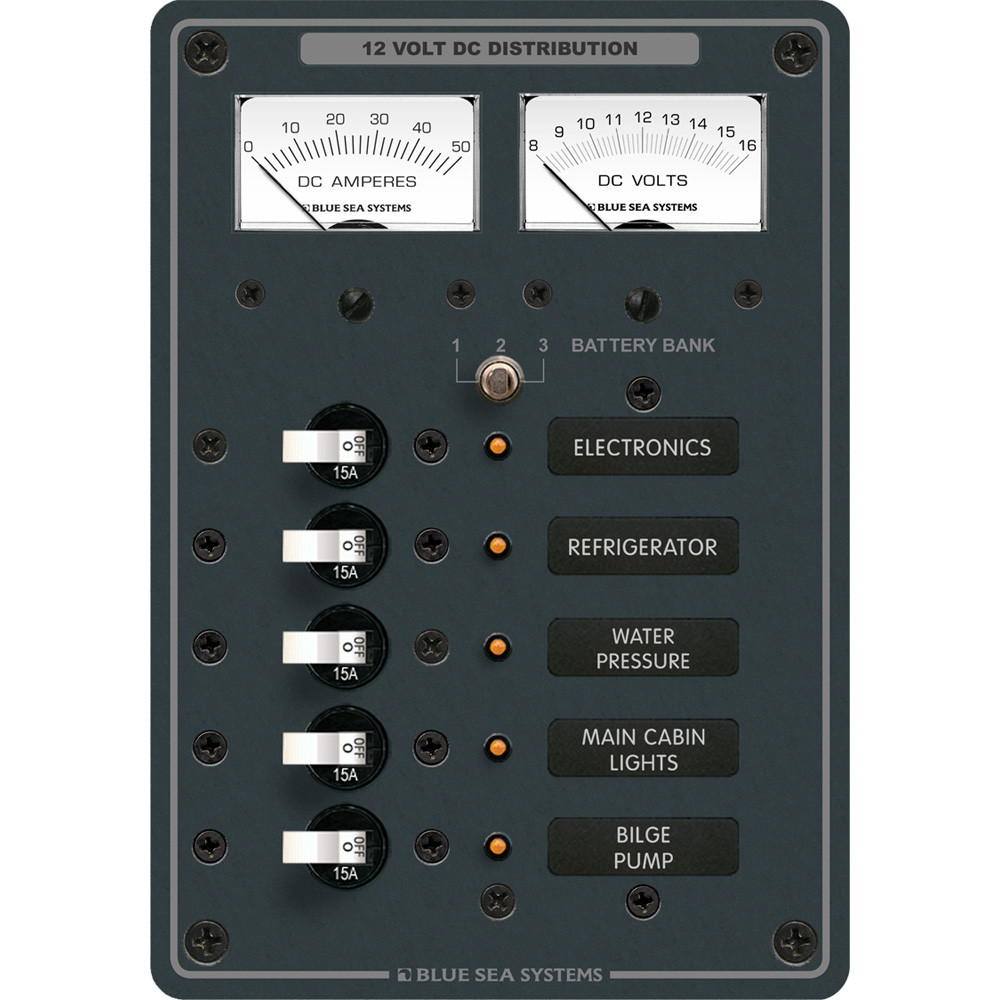

8081 DC 5 Position Toggle Branch Circuit Breaker Panel - White Switches
Features:
- All positive, negative and grounding buses installed, fully pre-wired
- Panels with meters include toggle switch for mounting up to 3 battery banks
- All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)
- All circuit label positions are backlit on standard panels - No kit required
- "ON" indicating LEDs installed in all circuit positions
Specifications:
- Positions: 5
- Nominal Voltage: 12v DC
- Maximum Amperage: 50A
- Height: 7.5"
- Width: 5.25"
- Depth: 2.5"
- Weight: 2.25 lbs
Included:
- (5) 7210 A-Series White Toggle Circuit Breaker - Single Pole 15A
- (1) 8030 Basic DC Panel Label Set - 30 Labels
- (1) 8041 DC Micro Ammeter - 0 to 50A w/ Shunt (Meter)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Max Breaker Quantity: 5
- AC/DC: DC
- Voltage: 12v
- Box Dimensions: 7"H x 7"W x 7"L WT: 5.6 lbs
- UPC: 632085080815
Owner's Manual (pdf)
