Crab pot wire mesh is heavy-duty welded steel wire, typically 12.5-gauge to 16-gauge, shielded with a 0.6 mm to 0.8 mm marine-grade PVC coating over a hot-dipped zinc bath. This layered barrier prevents saltwater corrosion and gives well-maintained traps an expected service life of 5 to 10 years in harsh marine environments.
For legal blue crab retention in estuarine traps, 1.5-inch square mesh forms the main body, while tight 0.5-inch mesh lines the bait chimney so crabs cannot strip your bait bare in a single tide. October brings sharp drops in water temperature across coastal estuaries like the Chesapeake Bay. As watermen prepare for the late-fall scrape and recreational crabbers pull gear before winter, structural weaknesses show up fast. A wire pot that held together in July can fall apart after one October gale when tidal currents grind bottom frames against shell beds and hard sand.

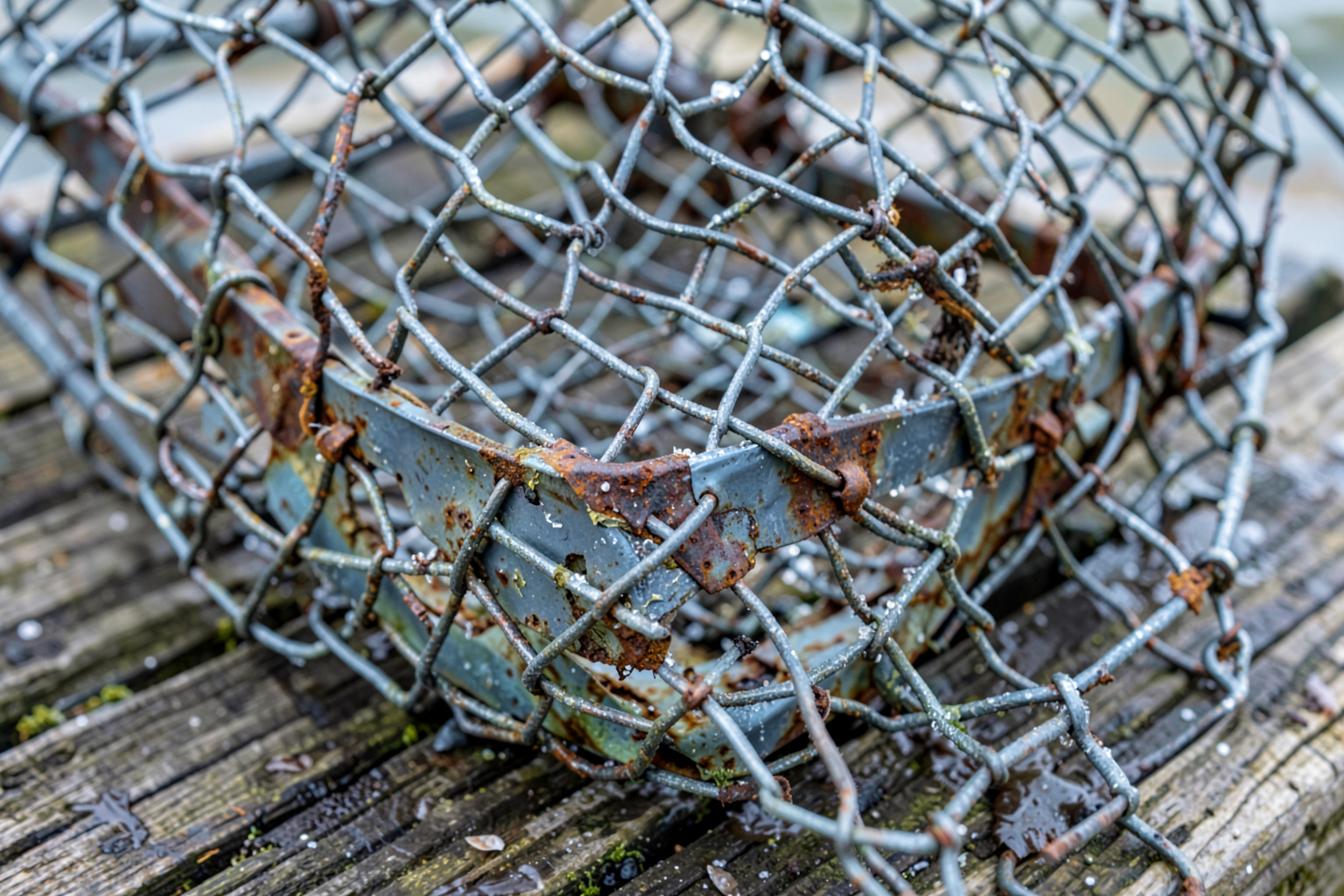

What Autumn Estuary Water Does to Low-Grade Trap Wire
Standard hardware store welded wire is completely useless in saltwater, and anyone who tells you it lasts a full season is wasting your money. Late autumn accelerates gear destruction because estuary dynamics change drastically as surface water cools and turns over.
Tidal Scour and Salinity Shifts in Autumn
Mid-Atlantic estuaries develop steep salinity gradients during fall turnover. In spots where tidal rivers meet open bay waters, salt levels swing wildly on every outgoing tide. Salt ions act as an aggressive electrolyte in that moving water. When autumn winds kick up heavy chop, underwater pots bounce and drag across bottom structure, grinding protective coatings against shell and sand. That constant scour strips light plastic coatings within weeks. Once water reaches the interior steel, the salinity differential drives rapid electrolytic decay. Cold, oxygen-rich fall water speeds up oxidation, leaving thin wire brittle before you pull gear off the line.
The Failure Points on High-Stress Frames
Trap damage consistently begins at three spots: the bottom outer runners, the perimeter seam clips, and the entry throat corners.
Bottom runners take the brunt of deck drops and seafloor drag. When pots sit in shifting mud, the bottom six inches of wire stay starved of oxygen while upper sections sit in flowing water. That difference creates an active aeration cell that rots welds from the mudline up. Corner joints take heavy strain whenever a pot hauler lifts a full load off the bottom. If the wire lacks sufficient tensile strength or has brittle welds, the metal snaps clean at the bend. Once a single weld breaks, adjacent wires carry double the load, triggering progressive failure across the parlor.
Galvanized Before Welding Versus Galvanized After Welding
The manufacturing process used to build your wire mesh determines whether your traps survive ten seasons or rot into scrap before Thanksgiving. Crabbers frequently buy rolls based strictly on price without checking how the zinc coating was applied.
Why Burned Weld Joints Rot Out
Galvanized Before Welding wire starts as zinc-coated strands pulled through an automated spot welder. When the welding electrodes fire to fuse crossing wires, the electrical arc reaches temperatures well above 1,500 degrees Fahrenheit. That intense localized heat vaporizes the protective zinc right at the joint. This leaves a weld joint of raw, unprotected carbon steel. Manufacturers often paint over these points or dip the mesh in thin vinyl, but water still gets into micro-fissures around the joint. The raw weld rusts, expands to twice its original volume, cracks the exterior vinyl, and breaks under light hand pressure.
Zinc Bath Standards for Marine Durability
To avoid rapid weld failure, always specify Galvanized After Welding mesh.
In this process, bare steel wire is welded into a rigid grid first. The entire welded panel is then submerged into a vat of molten zinc. This hot-dip bath seals every weld joint, corner, and cut edge in a continuous metallurgical bond. According to industrial manufacturing specifications for marine trap welded wire mesh, quality commercial cage wire features zinc coating densities between 240 and 300 g/m² beneath an outer 0.6 mm to 0.8 mm marine PVC jacket. This dual-layer barrier ensures that even if crabs scrape the vinyl skin, the dense zinc layer underneath stops rust from spreading. You can find proven wire panels and rigging supplies in our commercial fishing gear collection.

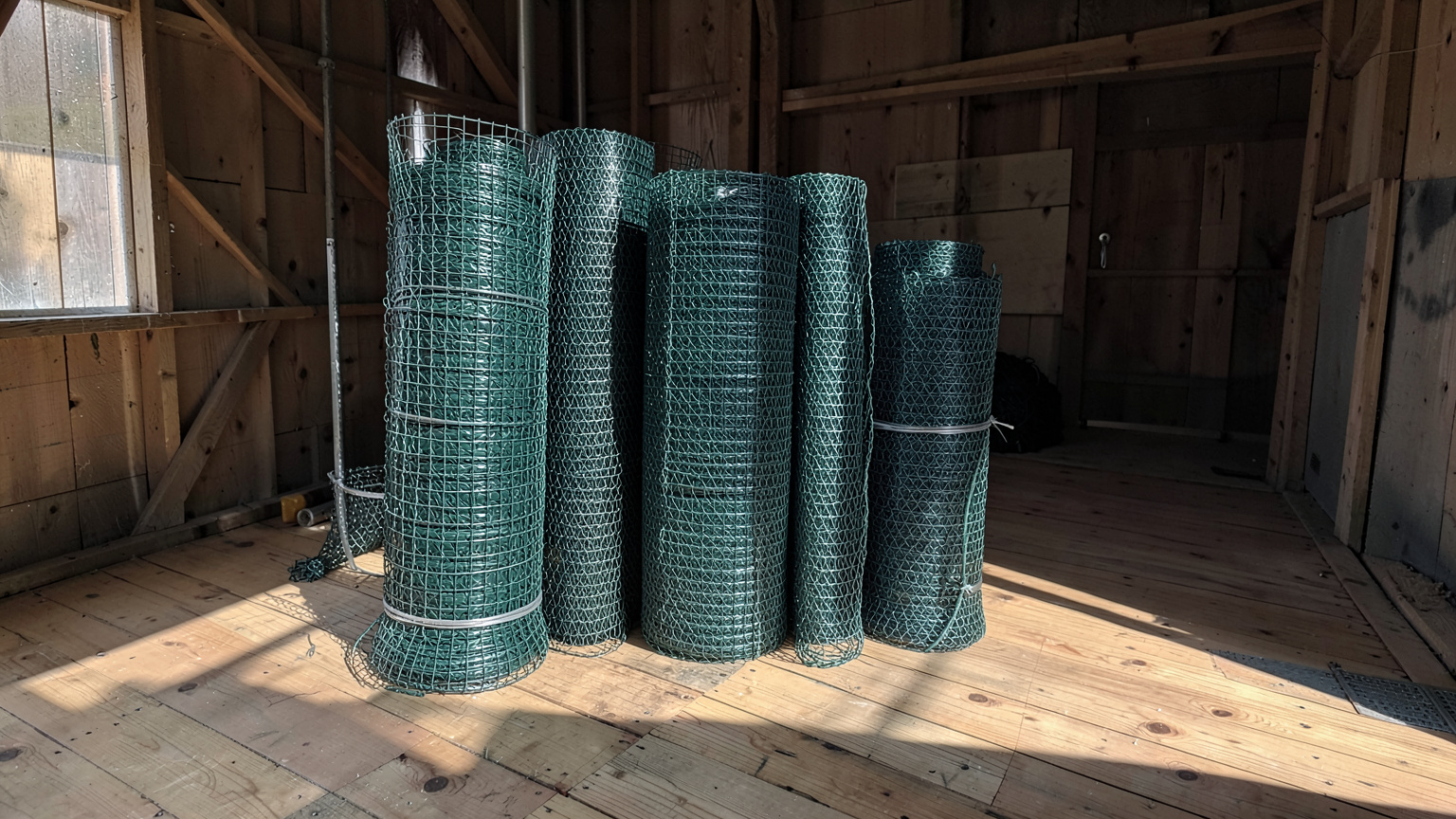

Selecting Crab Pot Wire Mesh Gauges and Apertures
Choosing the correct wire thickness requires balancing trap weight, rigidity in heavy current, and ease of handling on deck.
| Wire Gauge | PVC Coating Thickness | Primary Application | Expected Working Life |
|---|---|---|---|
| 16-Gauge | 0.6 mm to 0.7 mm | Protected tidal creeks, marshes, upper parlor walls | 3 to 5 seasons |
| 14-Gauge | 0.7 mm to 0.8 mm | Main trap body, high-current bay channels, recreational sets | 5 to 8 seasons |
| 12.5-Gauge | 0.8 mm marine jacket | Commercial bottom runners, weighted bases, heavy scour zones | 7 to 10 seasons |
Choosing Between 14-Gauge and 16-Gauge Wire
For protected tidal creeks and low-energy marsh sloughs, 16-gauge vinyl-coated wire is light and easy to bend with hand brakes. It lets you build dozens of pots quickly without wearing out your hands. If you drop gear in open bay channels with heavy tidal scour, step up to 14-gauge or reinforce the floor with 12.5-gauge wire runners. Tidal sand and oyster shell wear thin bottom wire down to bare metal in a single hard season. A lighter trap also tends to roll along the bottom during full-moon tides, crushing funnels and dumping crabs. Heavy 14-gauge and 12.5-gauge wire adds ballast that keeps the trap planted on the bottom without needing extra rebar weights.
Mesh Sizing for Parlors and 0.5-Inch Bait Chimneys
Standard 1.5-inch square mesh is the sweet spot for commercial blue crab retention because it holds mature legal crabs while allowing undersized peelers and juveniles to kick free before you haul the pot.
Going up to 2-inch mesh sheds current well in deep tidal guts, but you sacrifice too many legal hard crabs through the sides. Never build your bait box out of standard 1.5-inch cage mesh unless you want crabs stripping your menhaden down to clean bone in under two hours. Construct bait chimneys with 0.5-inch welded wire so crabs get the scent and graze without devouring the bait before the tide turns. This tight grid protects oily bunker or salted shad, keeping scent in the water column over an entire 24-hour soak.
Fastener Metallurgy and Avoiding Seam Electrolysis
The biggest mistake we see every fall is crabbers crimping stainless steel hog rings onto galvanized wire seams. Stainless steel is cathodic to zinc, meaning that tiny clip forces the adjacent galvanized wire to act as a sacrificial anode, eating a hole straight through your trap frame before spring.
The Dangers of Stainless Steel Fasteners on Galvanized Wire
Galvanic corrosion occurs whenever two dissimilar metals make contact inside an electrolyte like brackish bay water.
On the galvanic series, zinc sits on the active, anodic end, while stainless steel sits near the top as a noble, cathodic metal. Slapping cold galvanizing spray over rusted trap welds is a cosmetic waste of time once internal oxidation has compromised the steel core. When you clamp a stainless steel hog ring directly over galvanized wire mesh, the circuit is complete. The nobility difference drives electrons out of the zinc coating into the stainless clip. The zinc dissolves, exposing the carbon steel core beneath. Within four to six months, the wire directly under the clip rots through, causing seams to burst open while the clip itself looks untouched.
Using Marine Galvanized Clips and Sacrificial Zinc Anodes
To keep your gear intact, match fastener metals directly to your base wire. Secure wire seams, partition aprons, and bait boxes using heavy hot-dipped galvanized steel hog rings or marine-grade aluminum clips. Aluminum sits much closer to zinc on the galvanic series, preventing rapid seam decay. On long-soak commercial traps, attach a dedicated zinc anode to the inner wire frame using a galvanized bolt so the block sacrifices itself to protect both the welds and the clips.
During your October gear overhaul, inspect the corners where pot haulers strike the cage and check your sacrificial zinc anodes. If the zinc is depleted past fifty percent or the vinyl skin is scraped down to bare steel, re-dip the nicked wire with liquid vinyl and mount fresh zincs immediately so sitting gear does not corrode on the dock over winter.

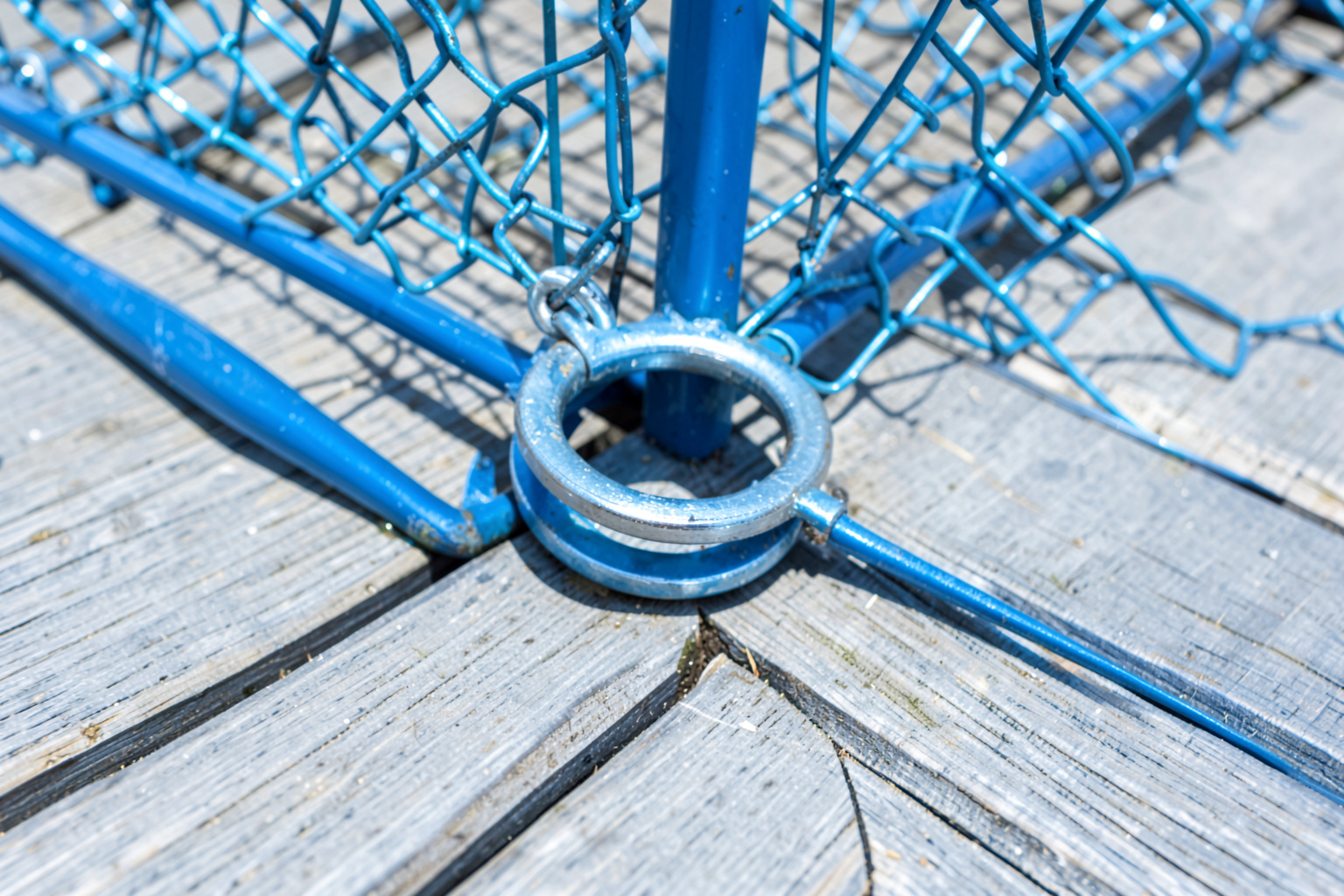

Fitting Hex Funnels, Cull Rings, and Turtle Excluders
A well-built wire pot relies on precise entrance geometry. Crabs follow scent along the bottom edges of the trap, so funnel placement directly dictates catch efficiency.
- Cut the frame entrance opening: Use heavy wire snips to cut an opening in the outer bottom wall. Count six to seven meshes wide by two meshes high. Cut the vertical wire strands flush against the perimeter crossbars so no wire burrs snag crab legs.
- Mount the entrance floor: Keep the bottom edge of the opening completely flush with the floor of the trap. If the funnel throat sits even an inch above the floor wire, bottom-crawling crabs will walk straight under the entrance ramp instead of pushing through the fingers.
- Lace the hexagonal funnel throat: Insert your pre-formed hexagonal wire funnel into the opening. Construction methods shared on the blue crab trap construction forum demonstrate crimping the hex wire seams tightly around the square frame using galvanized clips every two inches, keeping a flat ramp that tapers smoothly toward the parlor.
- Install the parlor cull rings: Cull rings must be hog-ringed into the upper parlor chamber right above the partition apron, because crabs naturally swim upward along the wire corners when searching for a way out. Make sure your hog rings bite firmly against the outer ring flange without encroaching on the legal inner diameter clearance.
- Fasten turtle excluders where mandated: In shallow coastal creeks and marsh guts, clip rigid two-by-four-inch wire Bycatch Reduction Devices directly into the funnel throat using marine clips.
Field research published in Fisheries Research (2026) demonstrates that narrow funnel designs effectively exclude diamond-backed terrapins without causing significant reductions in legal blue crab harvest. In designated management zones, such as North Carolina Diamond-backed Terrapin Management Areas, installing approved Bycatch Reduction Devices or narrow entrance funnels is legally required to prevent turtle drowning.
Securing Biodegradable Escape Panels and Winter Storage
Every crab pot fished in tidal waters needs a functional escape mechanism that disables the trap if a buoy line parts or a storm drags gear away.
- Securing escape doors with plastic zip ties instead of untreated natural twine turns every lost pot into an irresponsible ghost trap.
- Always hang your parlor escape panel or haul-out bungee with 100% untreated natural cotton or hemp twine rather than synthetic braid or nylon zip ties. That biodegradable twine will rot away in the salt within several weeks, opening the door and preventing the lost pot from ghost-fishing all winter.
- Commercial wire traps fished along Pacific shelves in depths between 90 and 250 feet require rectangular wire frames fitted with escape openings and biodegradable ghost-fishing release devices, as documented by the Monterey Bay Fisheries Trust (published 2021).
- Before stacking pots on trailers or dock racks for winter, blast every cage clean with high-pressure fresh water to remove dried salt crust, mud, and barnacles.
- Inspect corner bends and use liquid marine vinyl to seal bare metal scratches where pot haulers scuffed the coating.
- Store wire traps elevated on wooden stringers off damp ground to prevent soil moisture from rotting the base wire before spring.
If you are building new pots or re-rigging damaged frames before the spring run, look through our inventory of heavy-duty wire, cull rings, and rigging supplies in our commercial fishing gear department to get traps built right.
Frequently Asked Questions
What gauge wire is best for building commercial crab pots?
Most commercial builders use 14-gauge PVC-coated wire for the main trap body and 12.5-gauge wire for the bottom runners to handle seafloor scour. In quiet tidal creeks, lighter 16-gauge wire works well and bends easily by hand, but it wears thin quickly on hard oyster shell bottoms.
What is the difference between GAW and GBW wire mesh?
Galvanized Before Welding wire burns away its protective zinc coating during spot welding, leaving raw carbon steel welds that rust quickly under vinyl. Galvanized After Welding mesh is welded first and then fully submerged in molten zinc, sealing every joint and edge against salt penetration.
Why do stainless steel hog rings ruin galvanized crab pots?
Stainless steel is cathodic compared to zinc in saltwater. When clamped onto galvanized wire, the stainless clip forces the adjacent zinc coating to act as a sacrificial anode, corroding the underlying wire mesh to failure within four to six months.
What mesh size is best for crab pot bait boxes?
Build bait boxes out of 0.5-inch welded wire mesh rather than standard 1.5-inch trap wire. The tight 0.5-inch grid prevents blue crabs from ripping menhaden or shad off the wire, maintaining a steady scent trail over an entire 24-hour soak.
Do diamond-backed terrapin excluders reduce crab catch?
Controlled fishery tests published in 2026 confirmed that rigid two-by-four-inch Bycatch Reduction Devices and narrow entrance funnels exclude terrapins without causing significant reductions in legal blue crab harvest. Crabs compress their bodies laterally to enter the funnel, while rigid turtle shells are blocked at the throat.
