Wichard Captive Pin Twisted Shackle - Diameter 6mm - 1/4"

SKU:
01423-WIC
|
UPC:
768536014235
$34.99
$45.20
(You save $10.21 )
(No reviews yet) Write a Review

Captive Pin Twisted Shackle - Diameter 6mm - 1/4"

Features:

  • Captive pin twisted shackle forged in grade 316L stainless steel
  • The pin is connected to the body at all times even when opened
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • Single-handed operation for more safety

Applications:

  • Perfect for application where a 90° angle twist setup is required
  • Often used to attach an unarticulated part (block on a rail) or on purchases

Specifications:

  • Materials 316 stainless steel grade
  • Working load (lb) 1320
  • Breaking load (lb) 4620
  • Weight (lb) 0.086

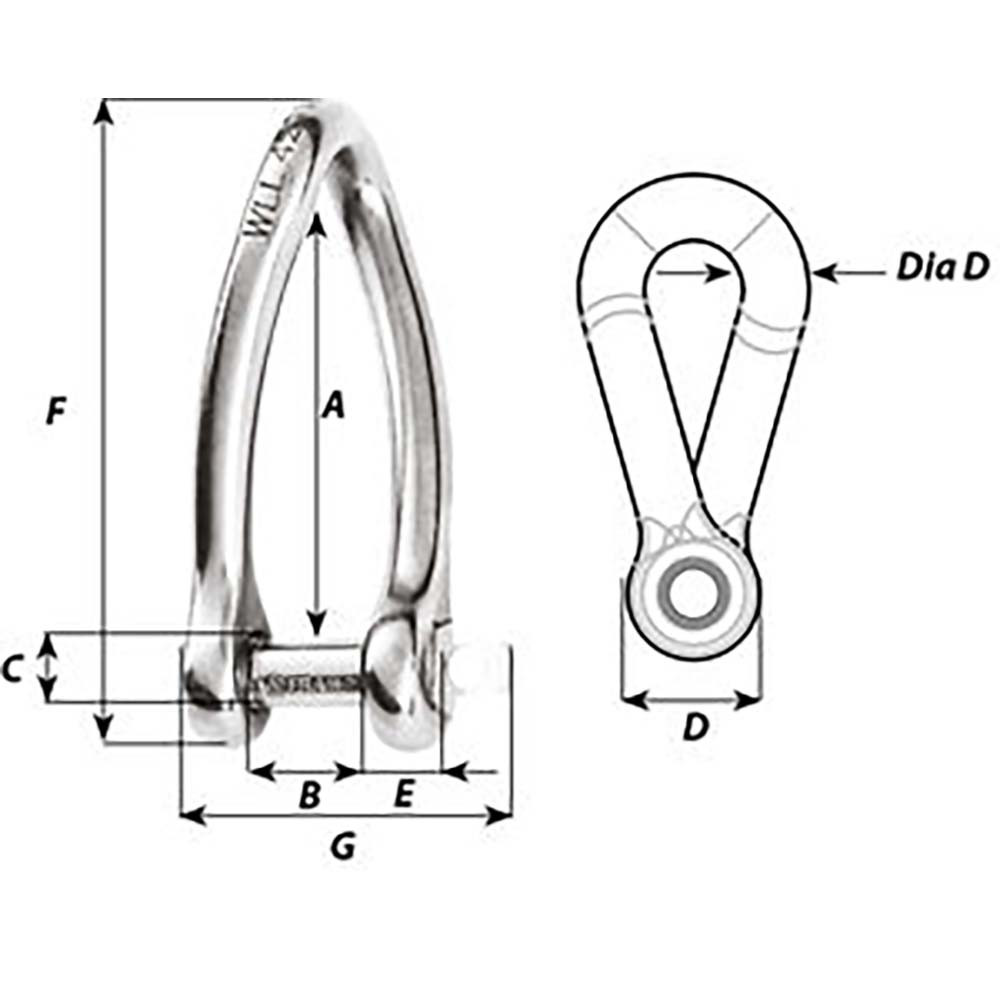

Dimensions (see 2nd image):

  • A (inch) 1-47/64"
  • B (inch) 15/32"
  • C (inch) 9/32"
  • D (inch) 35/64"
  • D diameter (inch) 15/64"
  • E (inch) 15/64"
  • F (inch) 2-23/64"
  • G (inch) 1-7/32"
