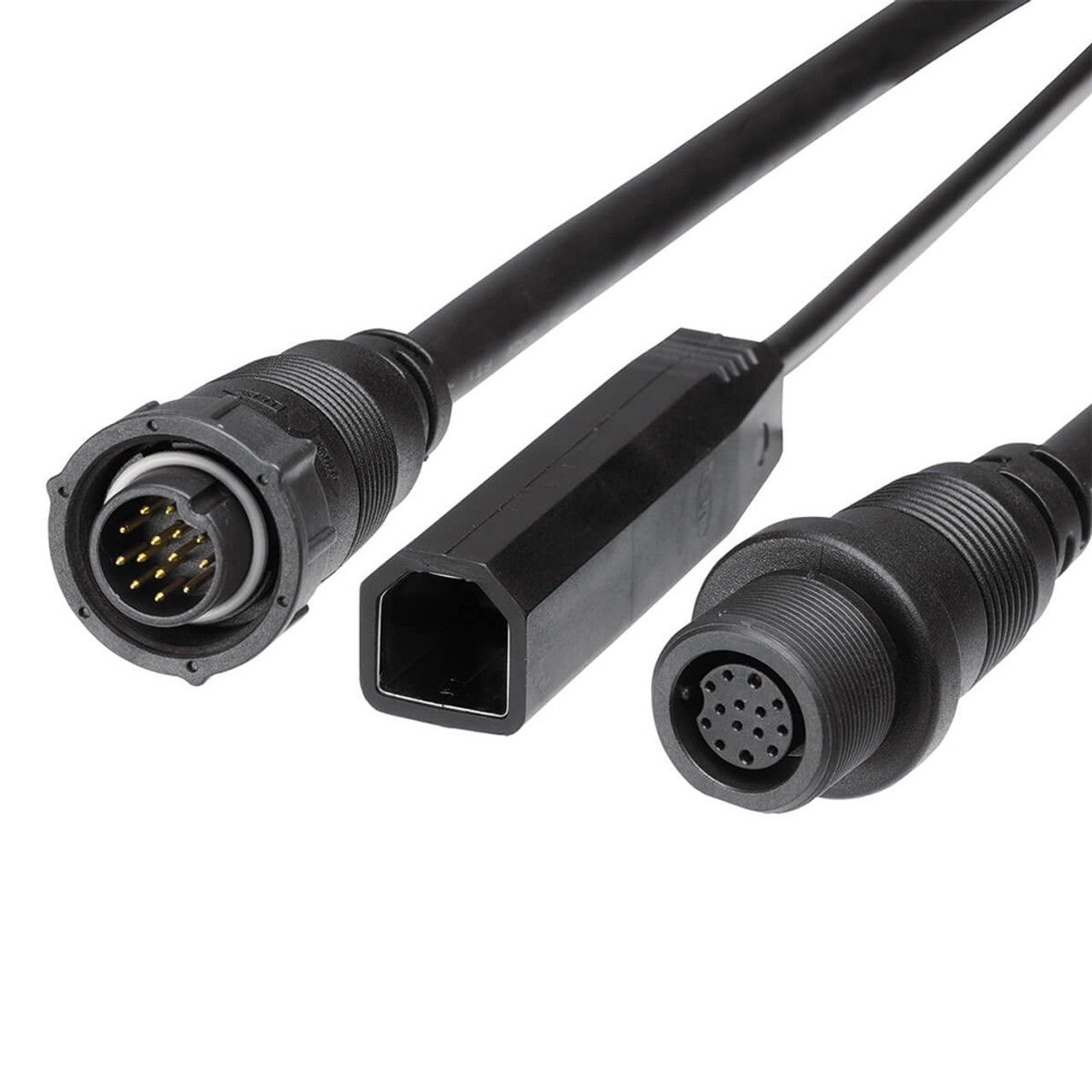

Humminbird 9-M360-2-DDI-Y - MEGA 360 2D/MDI 7-Pin Y-Cable

SKU:
720107-1-HUM
|
UPC:
082324054853
$54.99
(No reviews yet) Write a Review

9-M360-2-DDI-Y - MEGA 360 & 2D/MDI 7-Pin Y-Cable

This Y cable allows for the connection a MEGA 360 Imaging transducer and an external 7-pin HW / MDI+ transducer to the same compatible HELIX fish finder.

  • Combines MEGA 360 Imaging transducer and 7-pin Dual Spectrum/MEGA Imaging+ transducers into one 7-pin transducer plug for connection to the same, compatible HELIX fish finder.
  • For use when connecting a MEGA 360 Imaging transducer to a HELIX fish finder, in conjunction with an external 7-pin HW / MDI+ transducer.
  • This cable should not be use to connect a HELIX fish finder with both MEGA 360 Imaging and Built-In MEGA Imaging on Minn Kota trolling motors. Please refer to #720108-1 14 M360 2DDI Y for this specific rigging need.
  • Is not compatible with Built-in MEGA Imaging transducers on select Minn Kota trolling motors
  • 30" (76 cm) cable on Dual Sprectrum CHIRP side of cable
  • 10' (3 m) cable on the MEGA 360 side
  • 1-Year Limited Warranty

Specifications:

  • Type: Adapters
  • Box Dimensions: 3"H x 7"W x 9"L WT: 0.8 lbs
  • UPC: 082324054853
Shipping Cost:
Calculated at Checkout
Width:
7.000 (in)
Height:
3.000 (in)
Depth:
9.000 (in)
