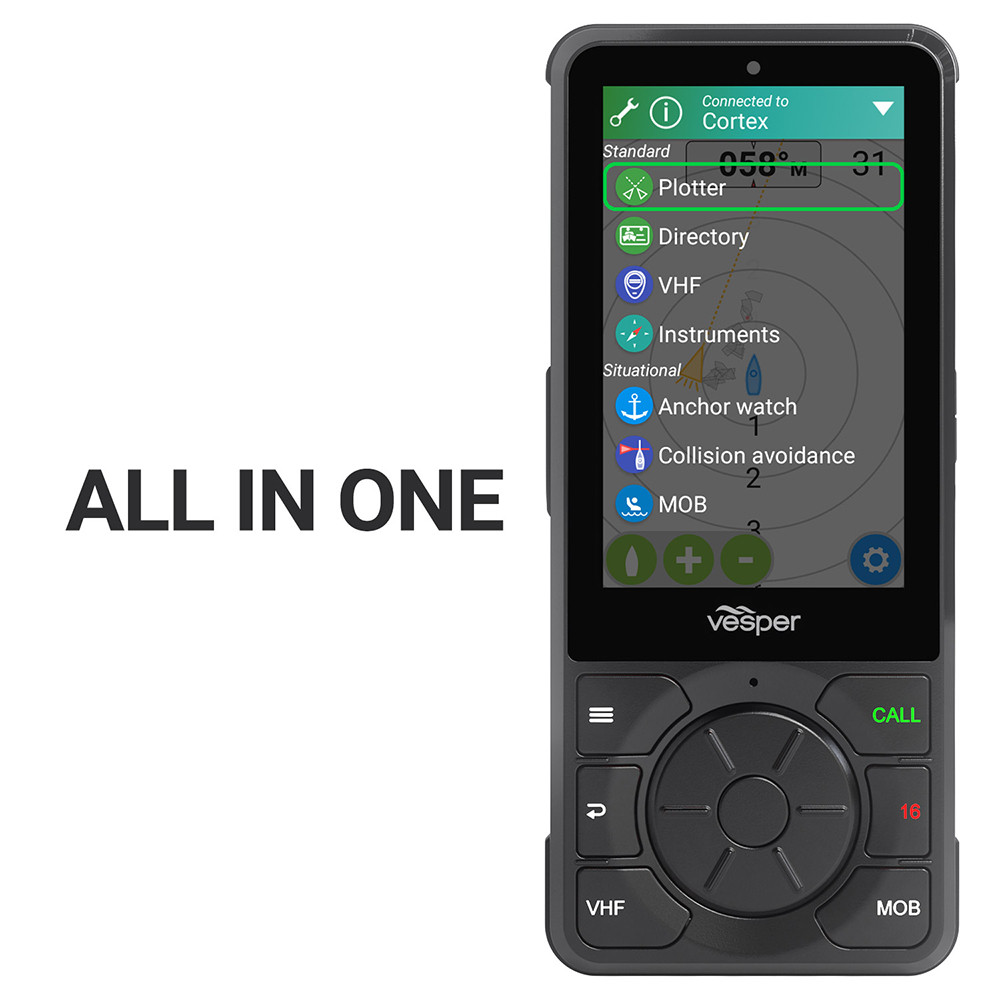

Cortex H1P Portable/Wireless/Rechargeable Handset with Charging Cradle
For the ultimate safety, add a battery-powered rechargeable handset to your Cortex. Have situational awareness and VHF communication at your fingertips, no matter where you are on your boat.
Features:
- Rechargeable, the portable battery-powered handset for connection to Cortex M1
- 4-inch multi-touch display with gorilla glass for maximum durability
- Single hand operation with the unique click wheel and dedicated buttons
- Wet and gloves capable touchscreen
- Optically bonded display for wide-angle and sunlight viewability, even in the harshest midday sun.
- 85 dBA of crystal-clear audio

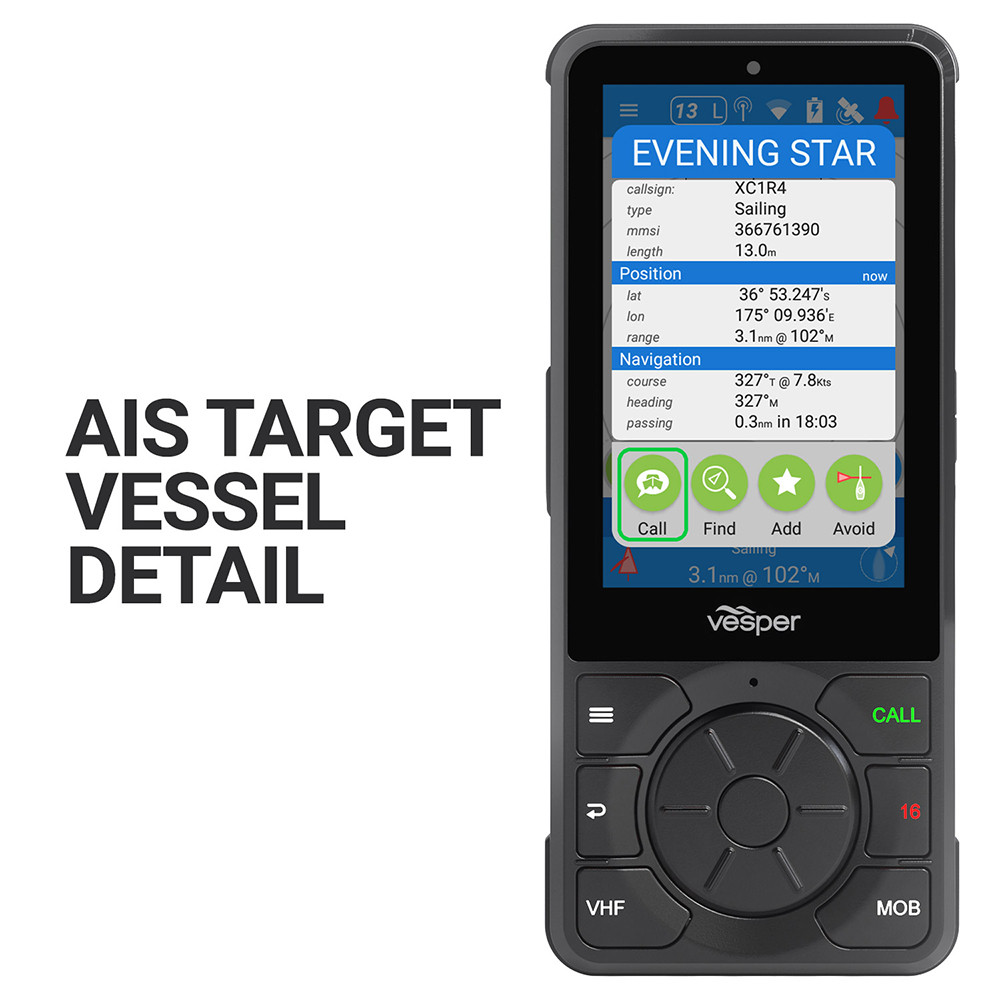

- Combined AIS and VHF display with voiced alerts
- Touch a vessel onscreen for direct calling (DSC)
- Add 10 handsets to Cortex M1
What's In The Box?
- H1P Portable Rechargeable Handset
- Charging H1P Cradle
- Non-Powered H1 Cradle
Specifications:
- Size: 164.8 mm x 71.8 mm x 21.4 mm (6.4882” x 2.8268” x 0.8425”)
- Power Supply: 12V, 1A max, 200mA nominal, 12 -24V compatible
- Battery: Lithium Polymer, 2 hour full charge, >12 hours nominal operation
- Weight: 235g
- Environmental: Waterproof (IPX7)
- Operating Temperature: -25°C to +55°C (-13°F to 131°F)
- Audio: 3W Class D amplifier, THD < 5% @ 85dBA
Display:
- Screen: LCD TFT Si, 640 x 800, 24bit Color
- Touch: Capacitive, optically bonded to LCD. Glove and salt water operable
- Backlight: 600 cd/m2
- Ambient light sensor for auto dimming
Quick Guide (pdf)Brochure (pdf)
