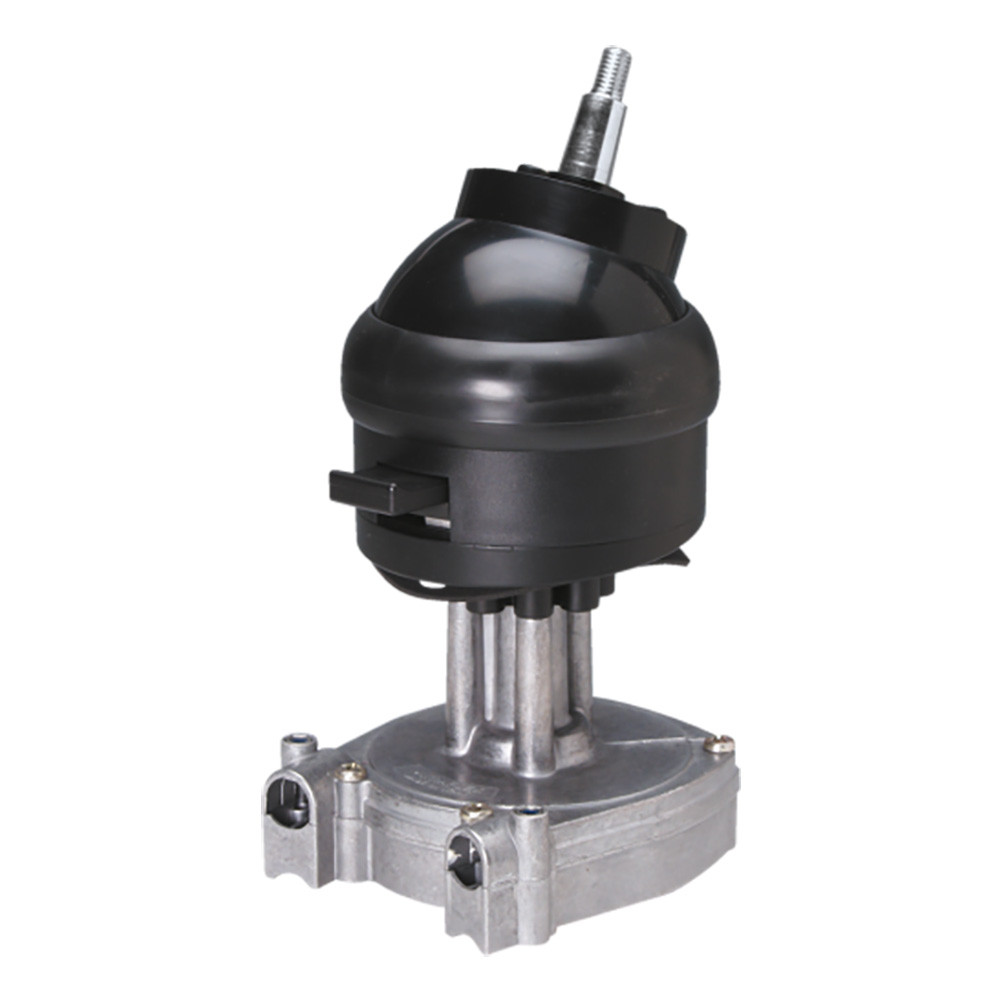

UFlex T83FC Zero Torq Rotary Helm Single Cable Steering - *Tilt Mechanism Sold Separately*

SKU:
T83FC-UFL
|
UPC:
702755021421
$249.99
$295.78
(You save $45.79 )
(No reviews yet) Write a Review

T83FC Zero Torq Rotary Helm Single Cable Steering

T83FC has a tilt range of 48° and five locking positions, fast to get connected and easily installed with a planetary gear design and 3.8 approx steering wheel turns lock to lock.

Features:

  • X52 Tilt Mechanism sold separately
  • Tilt range of 48° and five locking positions
  • Fast connect, simple installation
  • The tilt device eliminates under-dash movement
  • Standard 3/4” tapered shaft – stainless steel
  • All stainless steel cable output ends
  • Corrosion resistant materials
  • T83NRFC steering system is not to be used on boats equipped with engines that exceed the maximum horsepower rating of the boat
  • X52 tilt mechanism fits Ultraflex tilt mount rotary and rack and pinion steering helms as well as Ultraflex tilt mount hydraulic pumps except SilverSteer™ and MasterDrive™ steering systems
  • For boats faster than 50 mph, our hydraulic steering systems are recommended
  • Optional steering wheel
  • Engine connection kits
  • Exceeds EN 28848 safety standards
  • Exceeds ABYC P17 safety standards

Specifications:

  • M66 steering cable stroke: 228 mm (9")
  • Lock-to-lock steering wheel turns: Approx. 3,8
  • Max. dash depth: 25,4 mm (1")
  • Max. steering wheel diameter: 406 mm (16")
  • Min. steering cable bend radius: 200 mm (7.9")
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Shipping Cost:
Calculated at Checkout
Width:
8.000 (in)
Height:
7.000 (in)
Depth:
11.000 (in)
