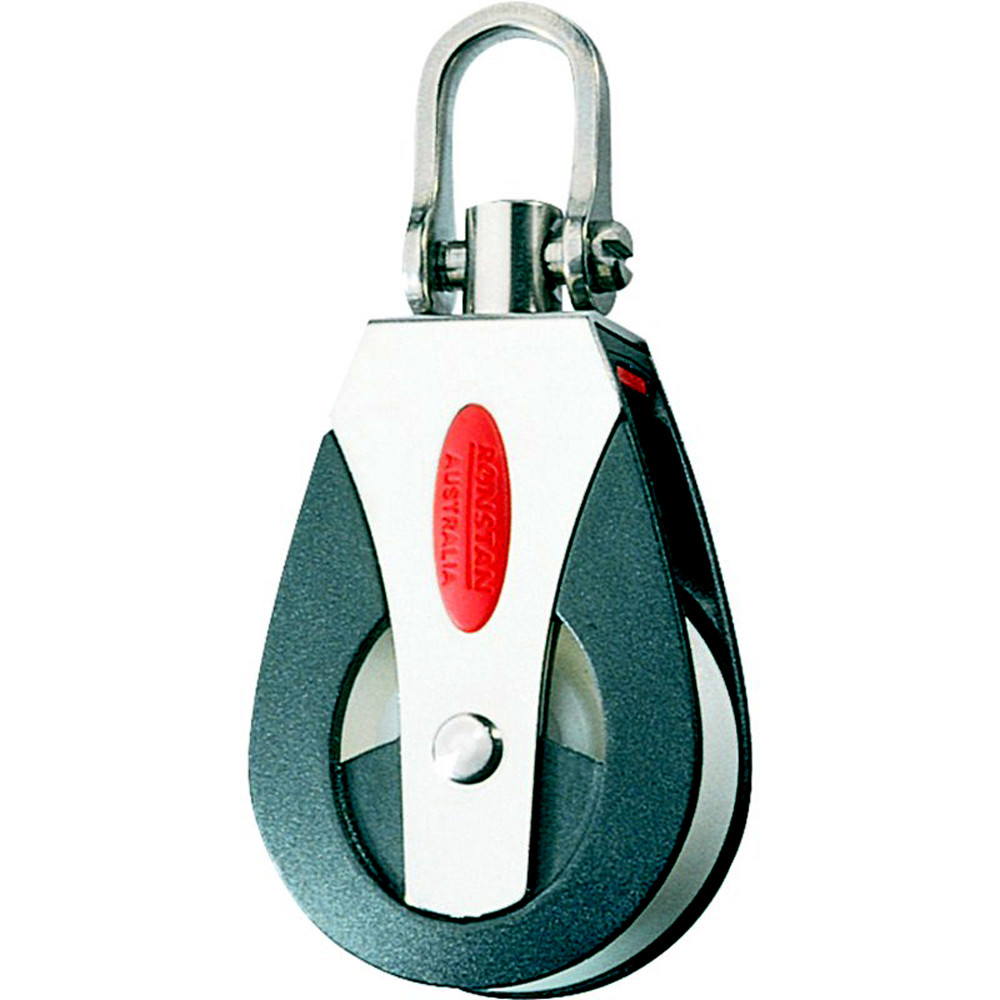

Series 40 Ball Bearing Block - Single - Universal Head
Sheaves running on Acetal or Torlon® ball bearings provide high performance & low friction. The 2-stage ball bearing system provides consistent performance over the full load range.Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required.
Features:
- Low friction Acetal or Torlon® bearing system
- Lightweight
- Cheek cut-outs for easy bearing maintenance
- Captive Lock™ universal head
- Slotted pin shackle eliminates fouled lines
Applications:- Mainsheet
- Halyard
- Vang
- Spinnaker control lines on off-the-beach catamarans, one design classes and sportsboats up to 8M(26')
Materials:- U.V. Stabilized Acetal sheaves
- Acetal ball bearings
- Impact and U.V. resistant, fiber reinforced Nylon cheeks
- Grade 316 stainless steel load strap and head fitting
Specifications:Sheave Ø: 40mm(1-9/16")
Max. Rope Ø: 10mm(7/16")
Pin Ø: 5mm(3/16")
M.W.L.: 350kg(770lbs)
B. L.: 1,000kg(2,200lbs)
Weight: 70g(2.5oz)
