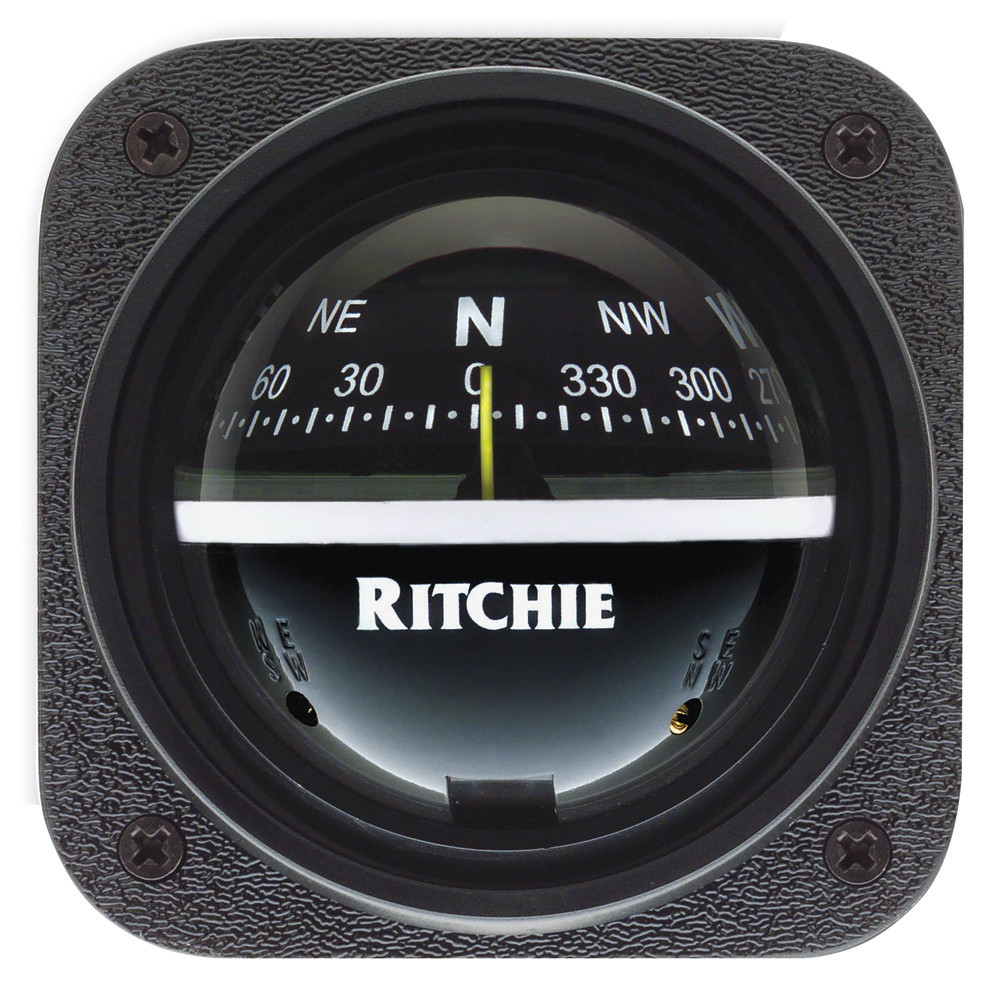

Explorer Compass
Features:
- 2 3/4″ (70 mm) Easy to Read Direct Reading Dial
- Viewing is adjustable to 30 / Heel angle to 25
- Easily Installed w/4 mounting screws provided, Fits 3″ (762 mm) Mounting Hole.
- Built-in Compensators to Easily Adjust for Deviation
- 12v Night Illumination
- 100% Repairable
- Exclusive 5-Year Ritchie Warranty
Notes:
Comes standard with 12v lighting. 24v lighting option is available.
Some custom built OEM models may have different lighting.
Specifications:
- Read: Front
- Mounting Style: Bulkhead
- Lubber Lines: Yes
- Backlight: Yes

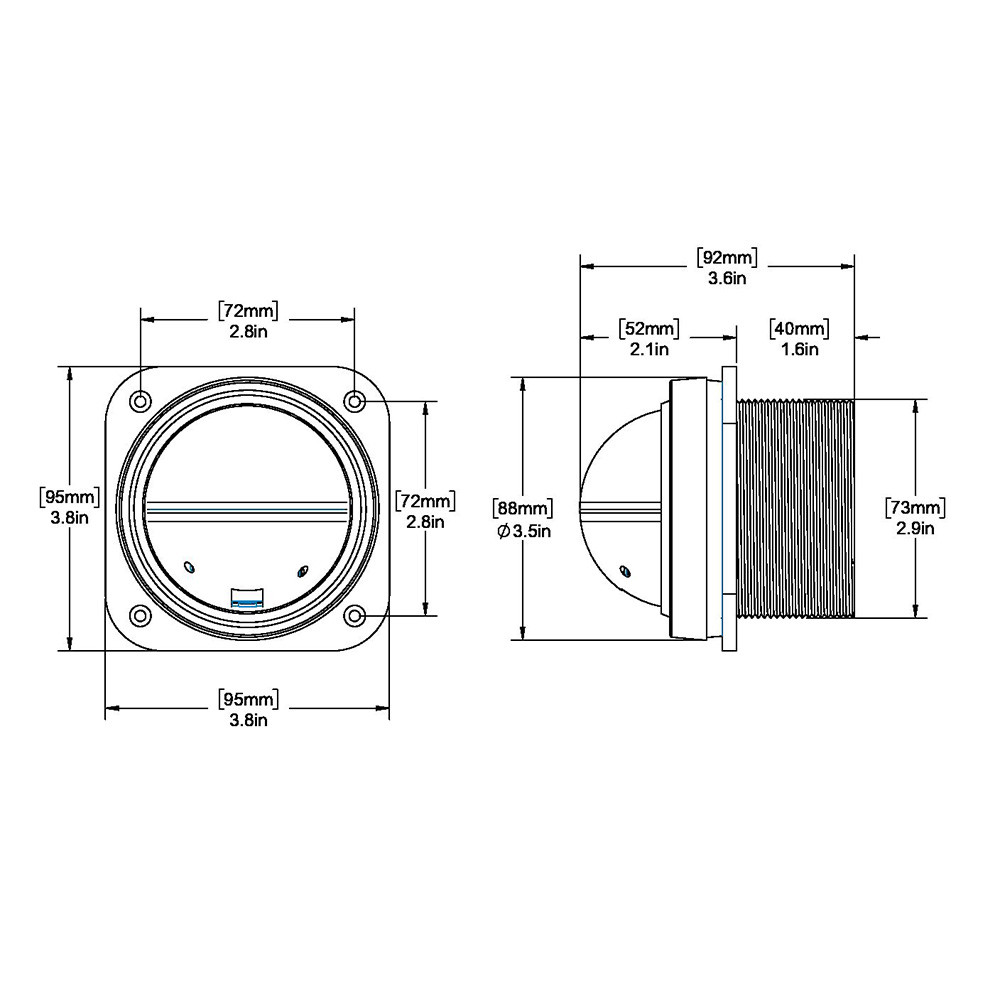

- Box Dimensions: 5"H x 6"W x 6"L WT: 0.8 lbs
- UPC: 010342161192
Quick Guide (pdf)Owner's Manual (pdf)
