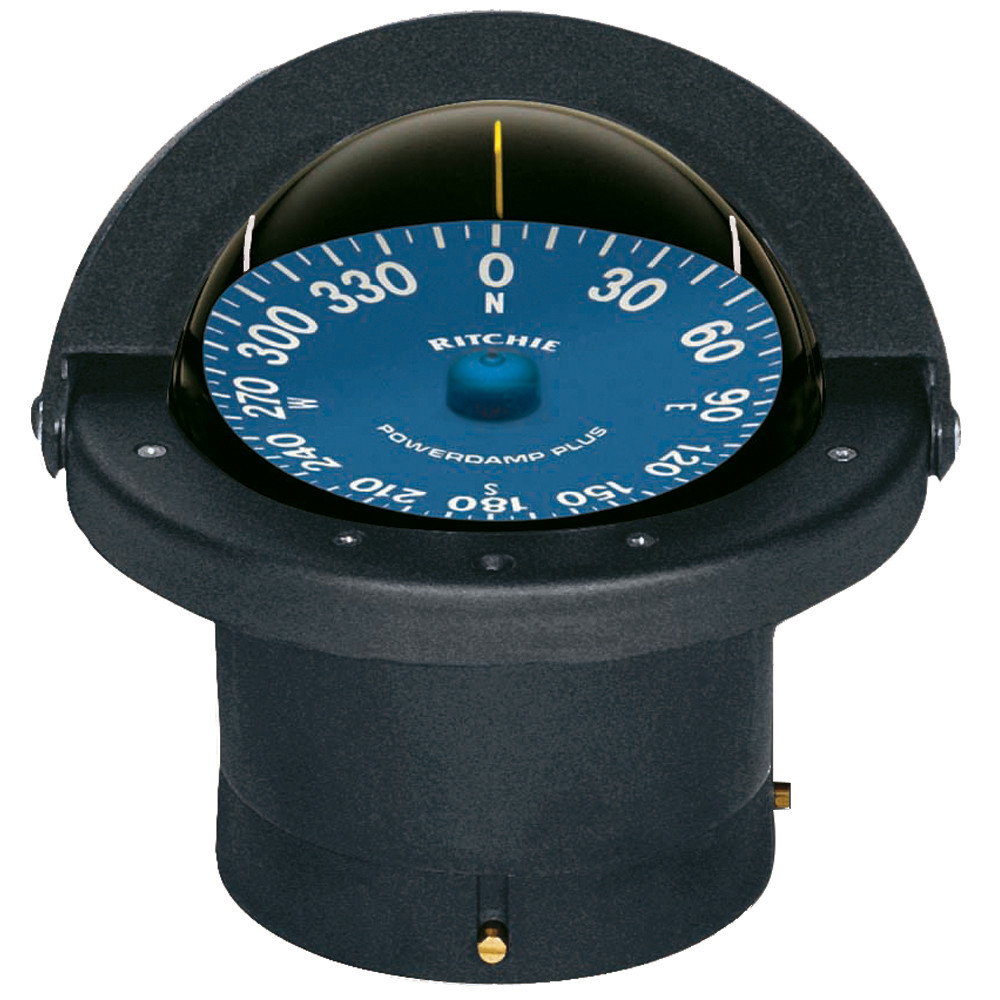

Supersport™ Compass
Developed for and tested on offshore race boats the SuperSport Series compasses feature the PowerDamp® Plus dial. This dial technology features the PowerDamp® dial skirt to prevent oscillation, larger DirectiveForce™ magnets for quick lock on and extra-large steel pivots and jewels for smooth fast action.
Features:
- 4 1/2″ (115 mm) PowerDamp Plus, High-Visibility Blue Dial with Extra Large White Numerals
- Easily Installed, Fits 4.75″ (121 mm) to 5.125″ (130 mm) Mounting Hole
- Built-in Compensators to Easily Adjust for Deviation
- Internal Gimbal Systems for Maximum Stability During Adverse Pitch and Roll Conditions
- 12v Green LED lighting standard
- 45 Degree Lubber Lines
- 100% Repairable
- Exclusive 5-Year Ritchie Warranty
Approx. Shipping Weight: 2lbs 10oz (1.19kg)
Notes:
Comes standard with 12v lighting. 24 & 32v lighting options are available. Some custom built OEM models may have different lighting.
Specifications:
- Lubber Lines: Yes
- Backlight: Yes
- Read: Rear
- Mounting Style: Flush
- Box Dimensions: 7"H x 8"W x 8"L WT: 2.9 lbs
- UPC: 010342150011
Quick Guide (pdf)Owner's Manual (pdf)
