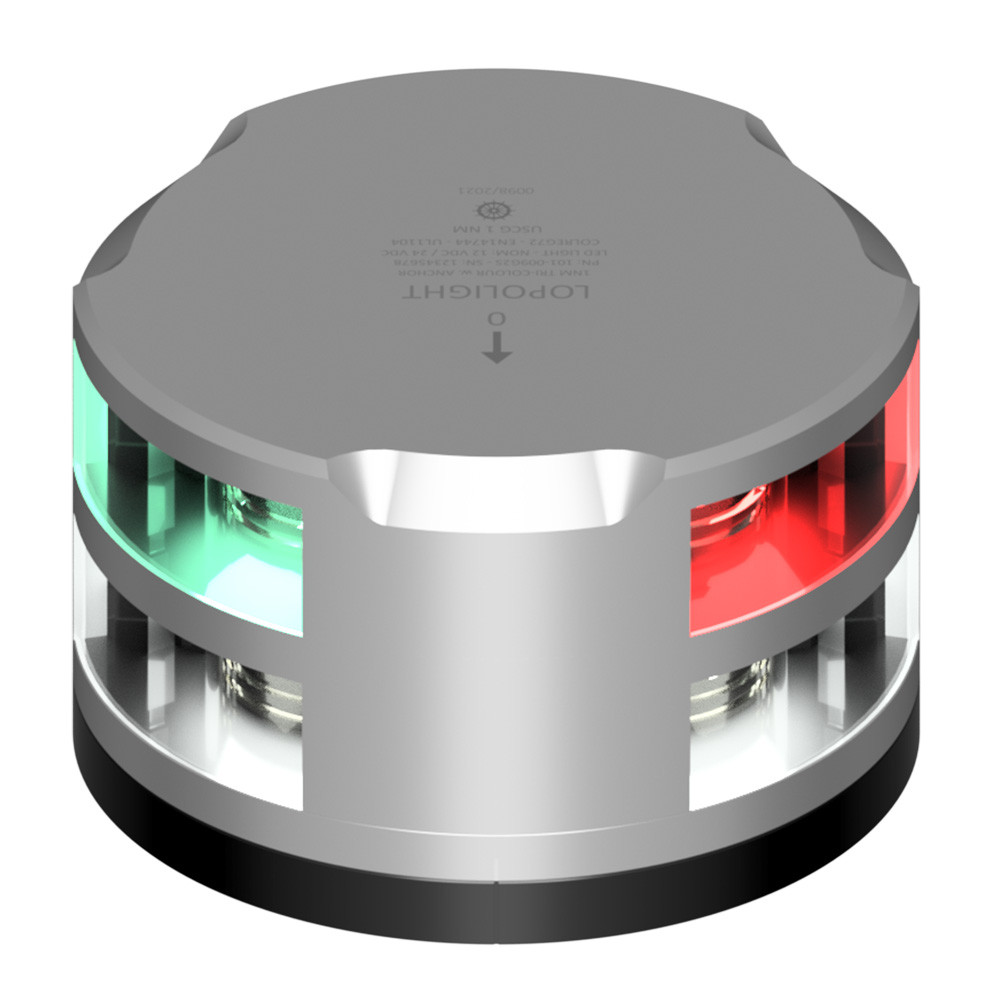

Tri-Color Anchor Light - 1NM - Silver Housing with FB Base
This silver tri-color anchor light is horizontally mounted and has a one-nautical-mile range. The FB base centers the wiring for antenna-type pole mountings. The base provides a screw-down onto the deck solution as well as a from-below mounting. Essentially, the base provides a sleeker, reduced profile.
Features:
- Silver anodized aluminum housing
- 0.75m cable is included
Specifications:
- Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
- Mounting: Horizontal
- EAN: 5704438042674
- Min. Feed Wire Gauge: 0.5mm2 AWG22
- Light Color: Red, green, and white
- Visibility: 1NM
- Included In the Package: 1 Navigation light, 0.75 meters shielded marine grade cable, and installation guide
- IP rating: IP68
- Connection: 0.75m cable
- Current Consumption (mA @ 24VDC): 81
- Current Consumption (mA @ 12VDC): 150
- Dimensions Metric: Ø92,5mm x 68mm
- Dimensions Imperial: Ø3.6" x 2.6"
- Operating Temperature: -25 degrees C to 55 degrees C
- Operating Voltage: 10-32VDC
- Power Draw (W): 2.6
- Vessel Size: Under 12 meters
Specifications:
- Housing: Silver
- Lens Color: White/Red/Green
- Visible Range (Miles): 1NM
- Voltage - Input Range (Volts): 10 - 32
- Box Dimensions: 4"H x 4"W x 5"L WT: 2 lbs
- UPC: 879343042806
Quick Guide (pdf)
