Choose between Shimano’s BeastMaster and ForceMaster electric reels by checking usable braid capacity first, then retrieve speed under load and boat power. For deep-drop fishing, the right reel must hold enough line for your depth plus drift, not just reach bottom on a calm day. Compare exact model codes in our Shimano reels selection before ordering.
Published capacity figures need particular care here. Island Fisherman Magazine’s June 20, 2024 explainer gives very different 80-lb braid capacities for the two reels, while the specifications available for the BM9000B and ForceMaster 9000A list the same spool dimensions. Those figures are not a sound basis for declaring one reel the deeper-water choice without checking the current specifications.
How Do the BeastMaster and ForceMaster Compare?
Match the model suffix before comparing numbers. A BeastMaster 9000 reference does not necessarily describe the BM9000B, and a ForceMaster 9000 reference should not automatically stand in for the 9000A. These published specifications provide a more useful starting point than family names alone.
| Criterion | BeastMaster BM9000B | ForceMaster 9000A |
|---|---|---|
| Spool dimensions | 90 mm diameter, 62 mm width | 90 mm diameter, 62 mm width |
| Motor | Brushless GigaMax | Confirm motor design for the exact model |
| Maximum retrieve speed | 558 ft/min | 140 m/min, about 459 ft/min |
| Practical speed at a 10 kg load | 390 ft/min | 90 m/min, about 295 ft/min |
| Published power or drag rating | 20 kg practical power | 25 kg maximum drag |
| Heat management | Thermo-Adjustable Drag and Heat Free System II | Heat Free System II |
| Braid capacity | Confirm for your braid diameter | Published PE ratings include No. 8 at 900 m and No. 10 at 650 m |
Practical power and maximum drag are different measurements. Neither tells you how fast a reel retrieves a loaded rig. The speed figures at a 10 kg load offer the more useful comparison for a long haul from bottom, though actual performance depends on the load and power supply.
Check capacity against the diameter of your braid. A PE line-size rating is not interchangeable with a pound-test label. Use the model codes in our Shimano big-game reels selection to identify the reel, then verify its current capacity chart.
How Much Braid Does a 600 to 1,200 Foot Drop Need?
An 800-foot drop needs about 267 yards just to reach straight down. Drift takes more line, and you still need a reserve on the spool. Do not choose a reel whose advertised capacity barely reaches your fishing depth.
| Depth | Line straight down | Line with 150 ft horizontal offset |
|---|---|---|
| 600 ft | 200 yd | About 206 yd |
| 800 ft | About 267 yd | About 271 yd |
| 1,200 ft | 400 yd | About 403 yd |
The offset column is a geometric illustration, calculated as a straight line from the boat to bottom. It is not a drift allowance: current can put a bow in the braid, and the boat keeps moving during the drop. Leave capacity for those conditions and for line lost to damage or retying.
Island Fisherman’s June 2024 article reports over 1,000 yards of 80-lb braid for the BeastMaster 9000 but only 340 yards for the ForceMaster 9000. Do not use that reported gap to make a purchase until the seller confirms capacity for the exact reel and braid. Our guide to saltwater reel types covers the broader reel choices.
What Brushless Motors and Drag Heat Mean on a Long Retrieve
What a Brushless Motor Changes
The BM9000B uses Shimano’s brushless GigaMax motor. Brushes are wear parts in a brushed motor; a brushless design eliminates them. Shimano describes its GigaMax design as producing less heat and using power more efficiently than a standard brushed design.
That does not make the boat’s wiring any less important. A capable motor still needs the correct voltage at the reel while it is lifting a heavy rig.
Drag Heat on a Long Retrieve
A slipping drag generates heat. On a long powered retrieve, continuing to wind against that slipping drag adds heat without bringing in much line.
The BM9000B’s Thermo-Adjustable Drag reduces motor speed when the drag begins slipping to help control heat. It does not set the drag for you. Set drag within the limits of your line and tackle, with enough give for a fish to run.
Both model specifications list Heat Free System II, so the ForceMaster should not be treated as having no heat-management features. Neither system replaces saltwater care. Rinse gently with fresh water after a trip and let the reel dry before storage.
Who Should Choose the BeastMaster?
The BM9000B deserves a close look if loaded retrieve speed matters on repeated deep drops. Its published practical speed at a 10 kg load is 390 ft/min, compared with about 295 ft/min for the ForceMaster 9000A. Its brushless motor and automatic speed reduction during drag slip are also concrete reasons to consider it.
Those features do not prove that it holds more of your braid or fits your rod holder. Confirm capacity and mounted weight before buying. For occasional shallower drops, the faster loaded retrieve may matter less than matching the reel to your existing tackle.
Buy for the worst day you expect to fish, not the calm day on the brochure.
Who Should Choose the ForceMaster?
The ForceMaster 9000A is worth considering when its verified capacity covers your fishing and you do not need the BeastMaster’s higher published loaded speed. Its specifications include a 25 kg maximum drag and a practical retrieve speed of 90 m/min at a 10 kg load.
It also offers Raku Raku Mode, which adjusts winding to maintain tension as the load changes, and Fixed Speed Mode for a consistent winding speed. Learn the controls before fishing deep. A mode that feels useful at the dock can behave differently with a heavy sinker below the boat.
Do not rule it out for 1,200-foot water solely because of the magazine’s 340-yard figure. Verify the current capacity for your braid first, then assess the reserve left after depth and drift.
What Power, Wiring and Rod Holder Does Your Boat Need?
Match the supply voltage to the exact reel’s manual. Do not assume compatibility from the Shimano name or from the outlet already installed in your cockpit. The wrong voltage can damage the electronics.
Use marine-grade cable sized for the reel’s current draw, with properly rated circuit protection.
Keep cable runs short and connections clean. Check voltage at the reel while the motor is working; an unloaded reading can hide voltage drop that causes sluggish winding.
Ask for the supply requirements in writing. Have a marine electrician check an uncertain installation before the trip. Our Hooker electric reels guide covers boat-side wiring considerations, but the Shimano manual governs your reel’s installation.

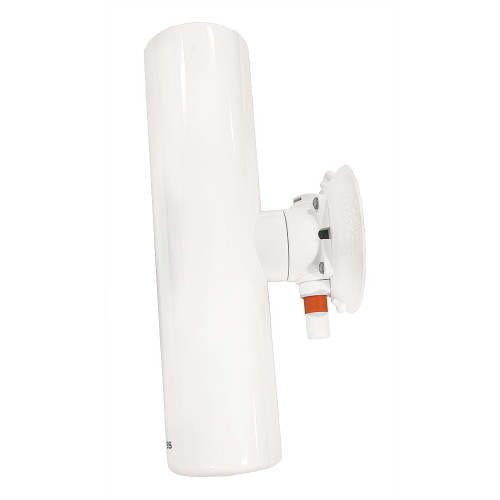

The rod holder must handle the loaded outfit, not just the rod’s resting weight. Island Fisherman’s June 2024 article recommends a strong holder and a rod leash. Electric reels add weight at the butt, so check the mounting hardware as well as the holder; our guide to conventional rod action can help with the rod choice.
Stop and disconnect power if you smell burning, see smoke or hear grinding. Repeated breaker trips also call for inspection, not repeated resets.
How Auto Jigging Modes and Line Counters Help Bottom Fishing
A line counter helps you return a bait to the same depth. Check it against marked line and follow the manual’s calibration procedure, particularly after changing braid or spool fill.
Island Fisherman’s June 2024 article describes auto jigging, depth memory and auto stop as common electric-reel features. That is not confirmation that every Shimano model includes each mode. Check the exact manual, and set any automatic stop to leave room for handling the leader and landing the fish.
Learn the reel’s manual controls before relying on automatic operation. The motor handles the winding; bait presentation and depth still decide whether you catch fish.
Which Shimano Electric Reel Fits Your Fishery
For an offshore trip out of Ocean City, Maryland, choose around the deepest drop you actually plan to fish. Your Annapolis-area departure point does not determine reel size; the offshore depth and drift do.
- Tilefish or grouper around 800 feet: either platform needs verified braid capacity with a working reserve. Compare loaded retrieve speed after that requirement is met.
- Drops around 1,200 feet: start with 400 yards straight down, then allow for current and reserve. Confirm capacity rather than relying on a general 9000-series label.
- Daytime swordfish: treat this as a separate tackle decision. Island Fisherman’s June 2024 article describes depths of 1,500 to 2,000 feet, but capacity alone does not make a bottom-fishing outfit suitable.
At Alltackle.com, we offer electric reels and specialized saltwater tackle for recreational and professional anglers. Browse our electric saltwater fishing reels, then call 1-888-810-7283 with the model code, fishing depth and boat voltage before placing your order.
Frequently asked questions
What is the difference between a Shimano BeastMaster and a Shimano ForceMaster electric reel?
The BM9000B has a brushless GigaMax motor and a higher published retrieve speed at a 10 kg load than the ForceMaster 9000A. It also has Thermo-Adjustable Drag, which reduces motor speed during drag slip to help control heat. Compare exact model codes and verify braid capacity rather than assuming every BeastMaster holds more line.
How much braid do I need on a Shimano electric reel for tilefish in 800 feet?
You need about 267 yards to reach 800 feet straight down, plus line for drift and a reserve on the spool. Current can bow the line, so depth alone understates the requirement. Check rated capacity for your braid diameter, not just its pound-test label.
Can I run a Shimano electric reel off a 12V boat battery?
Only if the exact model is rated for a 12-volt supply. Check its manual for voltage and current requirements, then match the cable and circuit protection to those requirements. Measure voltage at the reel under load if winding performance is poor.
Are Shimano electric reels good for daytime swordfishing?
Do not choose a deep-drop reel for daytime swordfish on spool capacity alone. Island Fisherman Magazine’s June 20, 2024 article describes daytime swordfish fishing at 1,500 to 2,000 feet. The complete outfit needs to suit that fishery, including its sustained load and boat-side power requirements.
Do Shimano electric reels come with English displays and manuals?
Confirm both for the exact unit before ordering, especially with an imported reel. Island Fisherman reported on June 20, 2024 that many imported Daiwa and Shimano electric reels may not have English displays, and that English versions of the Shimanos had only just become available. That dated report does not establish the language supplied with a reel sold now.
