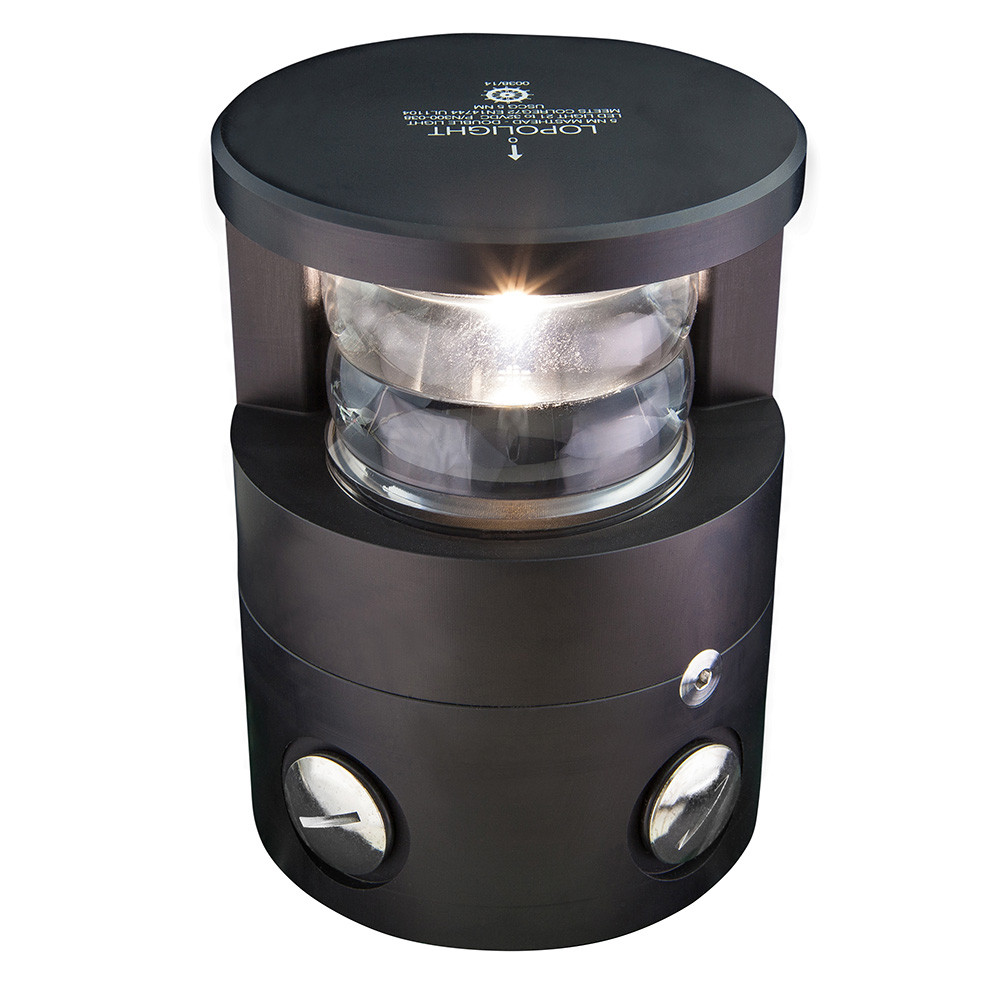

Lopolight 6NM Double Stacked Ice-Class Masthead Light

(You save $674.26 )
(No reviews yet) Write a Review

6NM Double Stacked Ice-Class Masthead Light

This double-stacked masthead light is dimmable, monitored, and controllable. Also, this light has a two-lead connection for power/control and ice-class heaters built-in. The de-icing function is automatic and controlled by the sensor in the light.

Includes Three Cable Glands:

  • 9-17mm (3/8-11/16 in.) cable diameter
  • 7-13mm (1/4-1/2 in.) cable diameter
  • 4.5-10mm (5/32-3/8 in.) cable diameter


  • Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
  • Mounting: Horizontal
  • EAN: 5704438006669
  • Light Color: White
  • Intensity: >94cd
  • IP rating: IP68
  • Connection: Plug connector
  • Visibility: 6NM
  • Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, epoxy, polyurethane
  • Current Consumption (mA @ 12VDC): 0
  • Current Consumption (mA @ 24VDC): 290
  • Dimensions Metric: Ø92,5mm x 143mm
  • Dimensions Imperial: Ø3.6" x 5.6"
  • Certification: This navigation light conforms to USCG Commandant Instruction M16672.2.
  • Operating Temperature: -60°C to 55°C
  • Operating Voltage: 20-32VDC
  • Power Draw (W): 7W (normal), 24W (de-icing mode, light on)
  • Vessel Size: Over 50m
  • Min. Feed Wire Gauge: 1.5mm2 AWG18
  • Weight (kg): 1.75 Kg
  • Weight (oz): 61.72 Oz


  • Visible Range (Miles): 6NM
  • Voltage - Input Range (Volts): 20-32

Owner's Manual (pdf)
