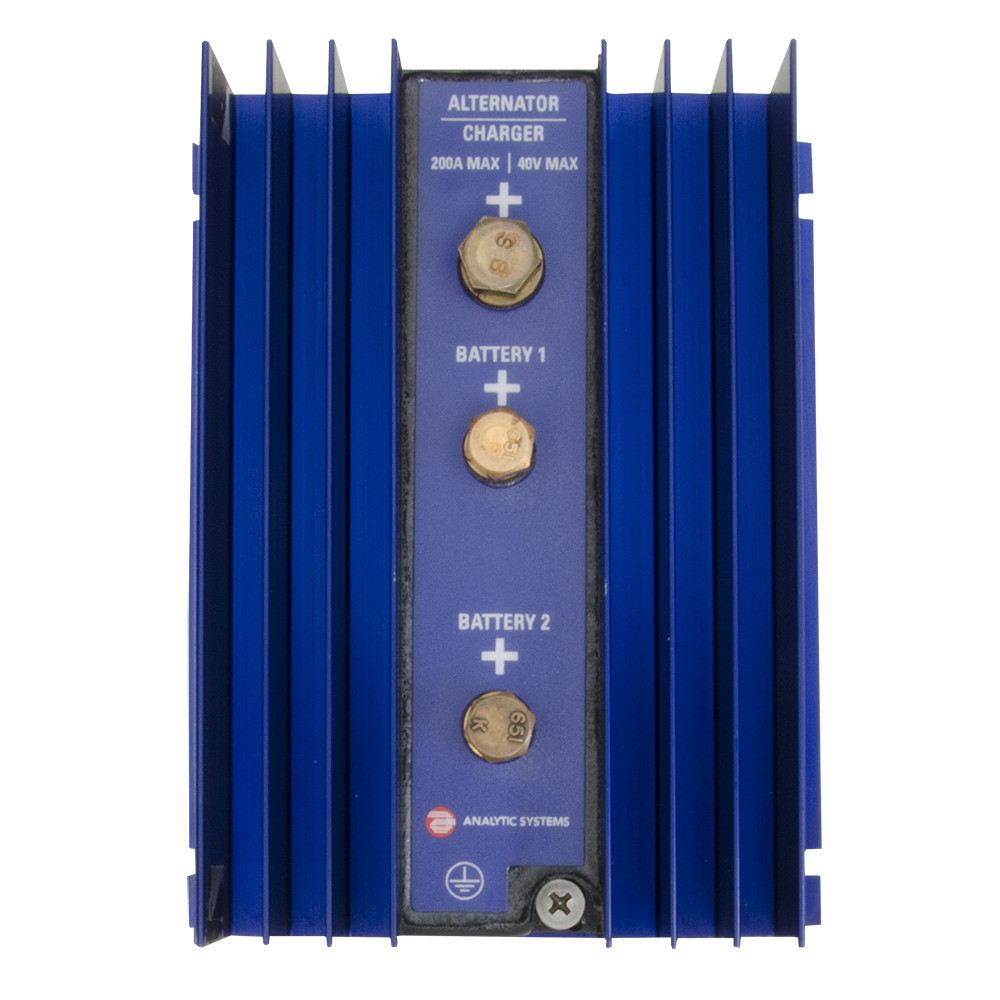

Analytic Systems Single Bank Battery Isolator, 200A, 40V

SKU:
IBI1-40-200-ANA
$139.50
$155.00
(You save $15.50 )
(No reviews yet) Write a Review

Single Bank Battery Isolator, 200A, 40V

Analytic Systems introduces the IBI (Ideal Battery Isolator) for 1, 2 and 3 bank battery systems, allowing all the batteries to be fully charged from a single alternator while maintaining electrical
isolation between the battery banks or between a vehicle and trailer.

Ideal Diode technology uses MosFet Transistors and control circuitry to replace the diode used in a traditional battery isolator and reduces the voltage drop across the isolator to a mere 160 millivolts at 200 Amps of charging current and essentially zero volts at low current, so all the power of the alternator is applied to the batteries ensuring a full recharge every time.

While the Ideal Battery Isolator is designed to be used with an alternator, it can also be used to convert a single bank battery charger to a 2 or 3 bank charger or as a pure diode between a vehicle and trailer or other remote load.

Features:

  • Waterproof Expoxy Sealed Construction
  • Easy Connection
  • Alternator/Charger Post 5/16", Battery Post 1/4"
  • Most Efficient use of Available Alternator Output
  • Maximize Battery Performance
  • Three year parts and labour warranty

Specifications:

  • Charger Input - Voltage: 10-40 VDC
  • Charger Output - Amps: 200 Amp
  • Box Dimensions: 5"H x 8"W x 9"L WT: 3 lbs
Shipping Cost:
Calculated at Checkout
Width:
8.00 (in)
Height:
5.00 (in)
Depth:
9.00 (in)
