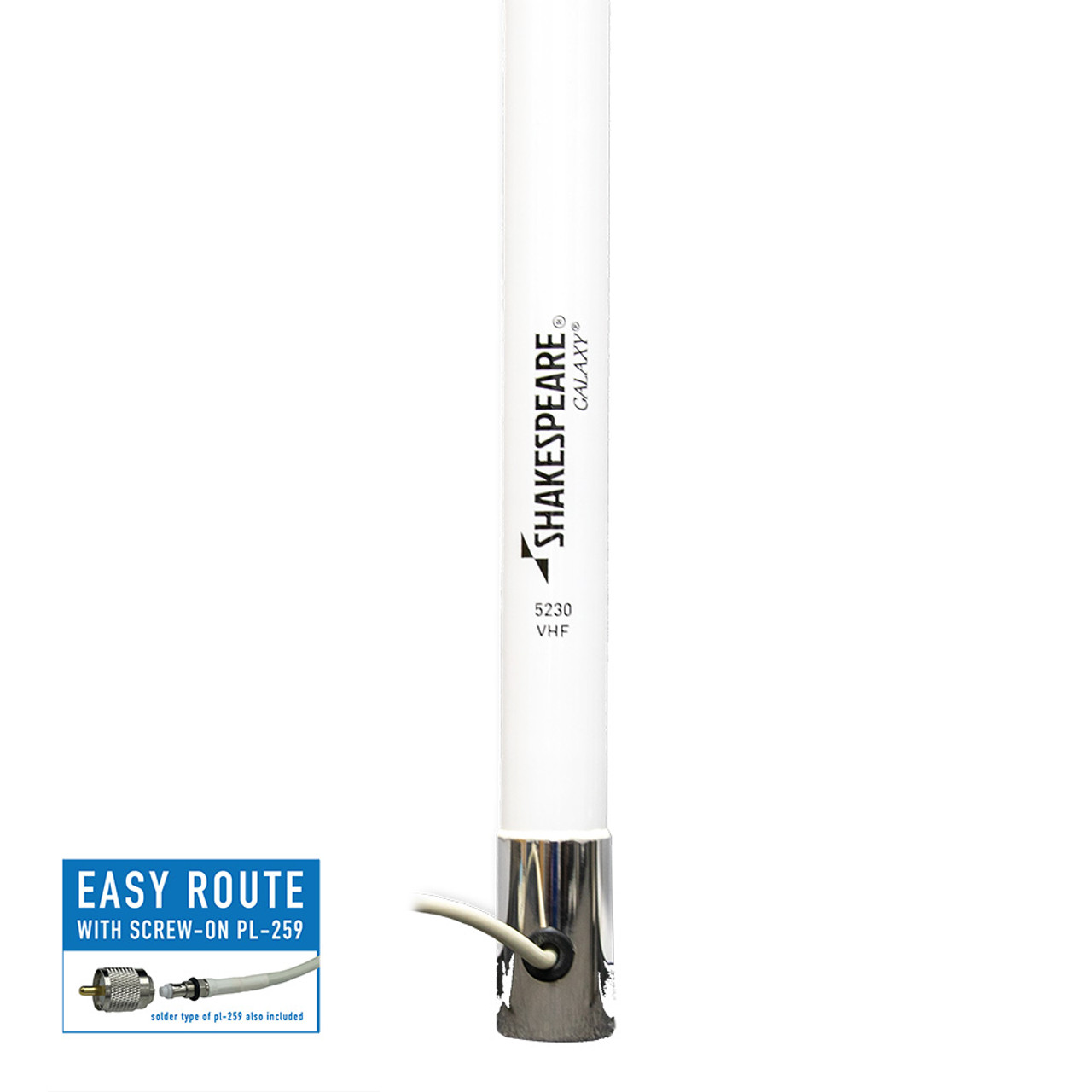

Shakespeare Galaxy 5230 14' VHF Antenna - 8dB Gain

SKU:
5230-SHA
|
UPC:
719441200084
$515.99
$599.99
(You save $84.00 )
(No reviews yet) Write a Review

Galaxy 5230 14' VHF Antenna - 8dB Gain

The ultra-performer, Shakespeares Style 5230 is the most effective 8dB antenna system available anywhere, thanks to its increased signal capture area.

Features:

  • 5/8 wave over 1/2 wave dipole
  • Brass and copper elements for maximum range and efficiency
  • Stainless steel ferrule with standard 1"-14 thread
  • Includes 20 feet of RG-8/X cable and a PL-259 connector
  • Suggested mount: Shakespeare Style 409-R or 410-R Mounting Kit
  • Two sections: Base 94", Tip 74" -
  • Shakespeare Limited Warranty: 5 years

Technical Specifications:

  • Frequency: VHF Marine Band
  • Bandwidth: 3 MHz within 2.0:1 VSWR
  • SWR: Nominally 1.5:1 at 156.8 MHz
  • Impedance: 50 ohms
  • Gain: 8 dB
  • Max Input (Watts): 200 watts
  • DC Ground: YES
  • Height (feet): 14
  • Polarization: Vertical

Specifications:

  • Antenna Band: VHF
  • Color: White
  • Construction: Fiberglass
  • Ferrule Type: Stainless Steel
  • Length (Inches): 168"
  • Box Dimensions: 3"H x 3"W x 95"L WT: 11 lbs
  • UPC: 719441200084

Quick Guide (pdf)
Shipping Cost:
Calculated at Checkout
Width:
3.000 (in)
Height:
3.000 (in)
Depth:
95.000 (in)
