Trident Marine 3" ID 90-Degree Blue Silicone Molded Wet Exhaust Elbow w/4 T-Bolt Clamps

SKU:
290V3000-S S-TRI
|
UPC:
704917002057
$129.99
$193.22
(You save $63.23 )
(No reviews yet) Write a Review

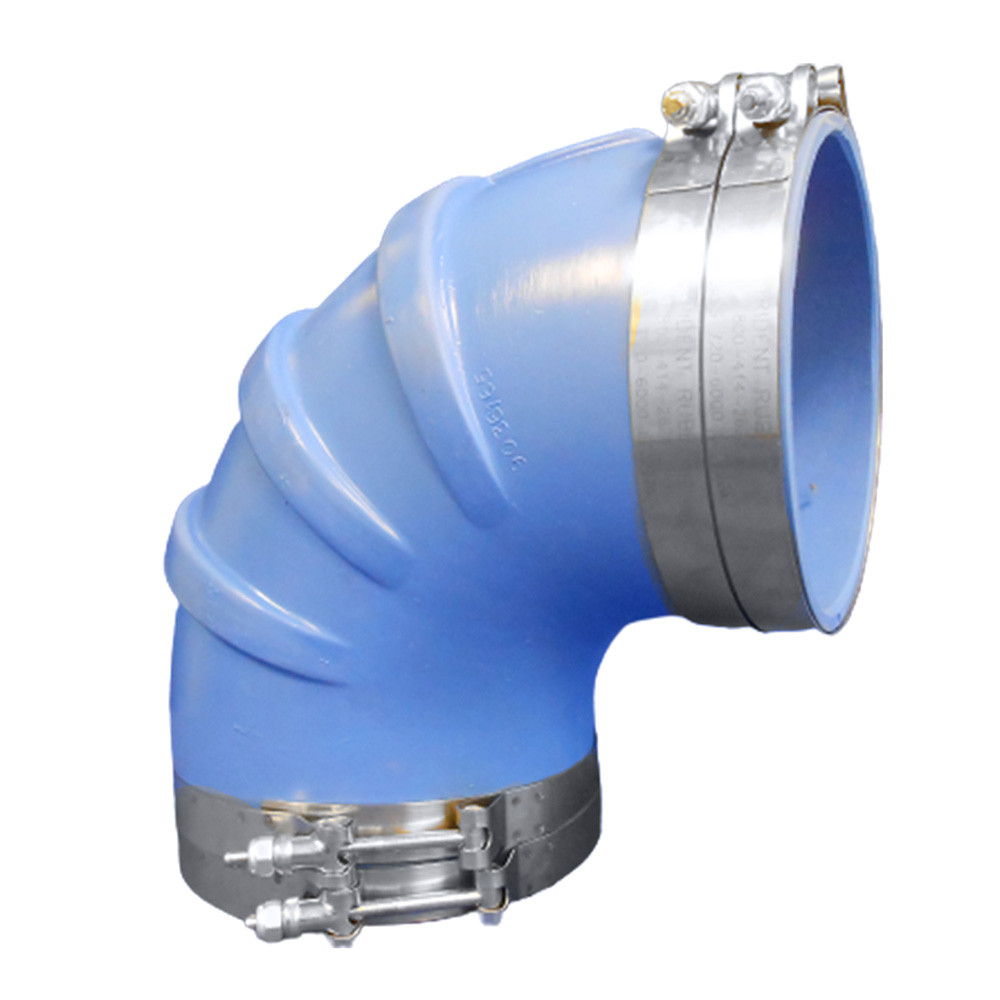

3" ID 90-Degree Blue Silicone Molded Wet Exhaust Elbow with 4 T-Bolt Clamps

Trident silicone-blend rubber marine wet exhaust connections. They are molded in very high-temperature blue silicone EPDM blended rubber with a smooth bore and cover.

Features:

  • Four stainless steel t-bolt clamps
  • Very high temp silicone/EDPM blend rubber - molded
  • This elbow has excellent resistance to ozone, salt water, diesel fumes, splash, cold, heat, and aging
  • Exceeds (SAE J2006-R1, and ABYC & NMMA P-1) exhaust standards
  • Blue very high-temperature silicone blended with EDPM rubber at 350°F (177°C) max continuous

Construction:

  • Color: Blue
  • Temperature Range: up to 350°F (177°C)

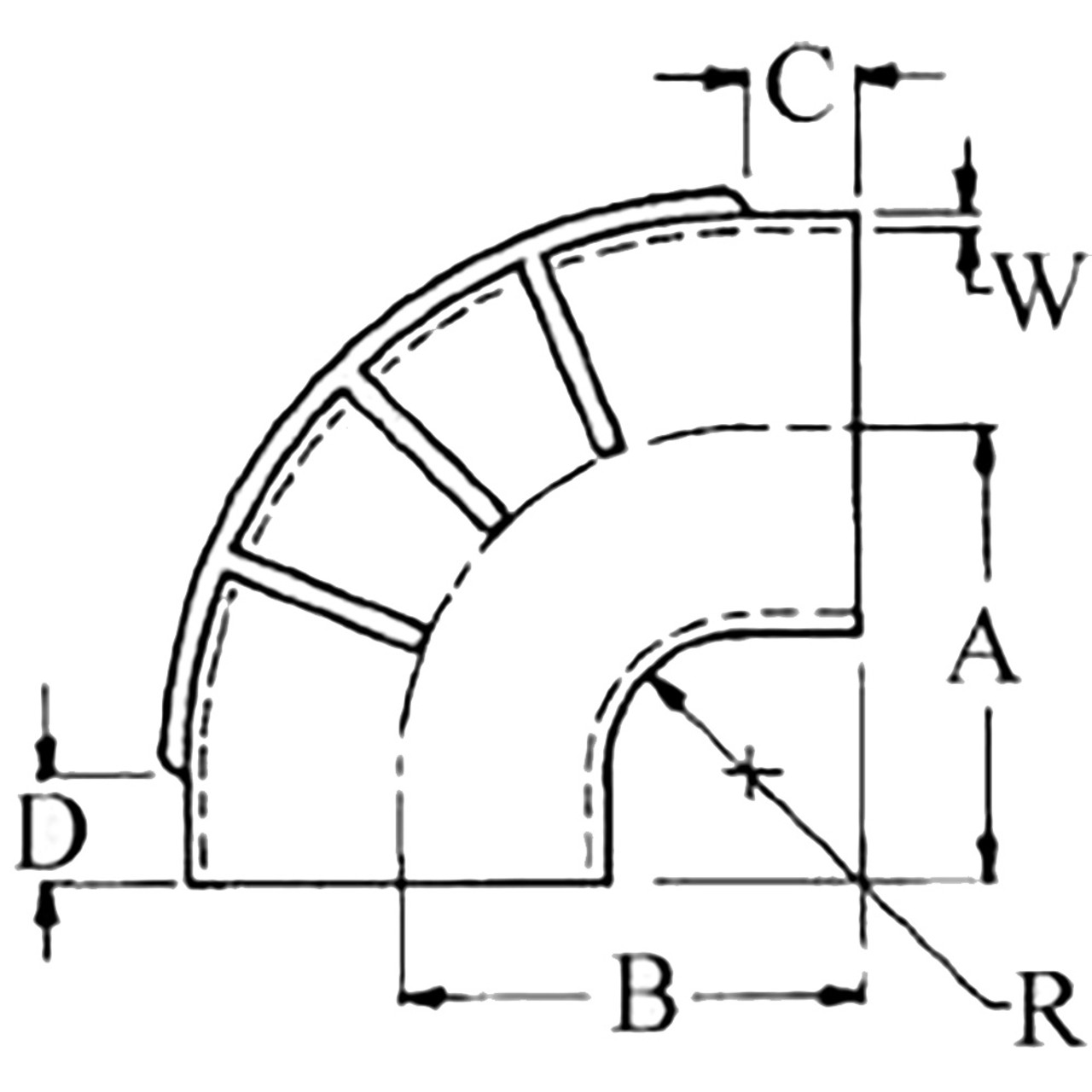

Specifications:

  • Inner Diameter: (inch) 3” / (mm) 76.2
  • A: (inch) 5.25” / (mm) 133
  • B: (inch) 5.25” / (mm) 133
  • C: (inch) 1.75” / (mm) 44.4
  • D: (inch) 1.50" / (mm) 38.1
  • R: (inch) 2” / (mm) 50.8
  • W: (inch) 0.25" / (mm) 6.4
  • Elbow Degree: 90 degrees


Quick Guide (pdf)
Shipping Cost:
Calculated at Checkout
Width:
7.000 (in)
Height:
7.000 (in)
Depth:
7.000 (in)
