How to Replace Broken Cooler Hinges with Cooler Shield Replacement Hinges
Restore Your Igloo, Coleman, Rubbermaid, Thermos or Gott Cooler
A broken cooler hinge doesn't mean it's time to throw away a perfectly good cooler. Whether you're using your cooler for offshore fishing, camping, tailgating, boating or backyard entertaining, damaged hinges can make an otherwise reliable cooler difficult to use.
Fortunately, replacing worn-out or broken cooler hinges is a relatively simple DIY repair. Cooler Shield replacement hinges offer an alternative to replacing the entire cooler, helping extend the useful life of your equipment.
In this guide, we'll explain how to remove damaged hinges and install Cooler Shield replacement hinges on compatible Igloo, Coleman, Rubbermaid, Thermos and Gott coolers.
Click to see all the Cooler Shield Hinge Options
Why Do Cooler Hinges Break?
Cooler hinges experience considerable wear and tear, especially when coolers are frequently opened, exposed to sunlight or transported in demanding environments.
Common causes of cooler hinge failure include:
-
UV exposure: Extended sunlight can make plastic hinges brittle and susceptible to cracking.
-
Repeated opening and closing: Frequent use gradually weakens hinge components.
-
Overextension: Opening a cooler lid beyond its intended range can damage hinges or mounting points.
-
Saltwater exposure: Marine environments can accelerate corrosion of metal fasteners and deterioration of some hardware.
-
Accidental impacts: Coolers sliding around in boats, truck beds or trailers can place excessive stress on hinges.
For fishermen, broken hinges are particularly frustrating. A cooler that won't stay properly aligned can be inconvenient when storing bait, fish, ice and beverages during a long day offshore.
Replacing damaged hinges before they fail completely can prevent additional damage to the cooler lid and body.
Click to see all the Cooler Shield Hinge Options
What Are Cooler Shield Replacement Hinges?
Cooler Shield replacement hinges are aftermarket cooler repair components intended to replace damaged or worn hinges on compatible cooler models.
They provide a practical way to restore the connection between the cooler lid and body without purchasing an entirely new cooler.
Depending on the particular Cooler Shield hinge kit, replacement hinges may be suitable for selected coolers manufactured by:
-
Igloo
-
Coleman
-
Rubbermaid
-
Thermos
-
Gott
Important: Not every cooler from these manufacturers uses the same hinge dimensions, mounting-hole spacing or fastener configuration. Always verify the specific Cooler Shield hinge kit's compatibility with your cooler model before ordering.
Click to see all the Cooler Shield Hinge Options
Tools and Materials Needed
Replacing cooler hinges typically requires only a few basic tools.
Compatible Cooler Shield replacement hinges
Phillips-head or flathead screwdriver, depending on the fasteners
Replacement mounting screws, if required
Soft cloth and mild cleaning solution
Measuring tape or ruler
Drill and appropriately sized bit, only if the approved installation method requires them
Most straightforward hinge replacements can be completed in approximately 10–20 minutes, provided the replacement hinges match the existing mounting configuration and the screw holes are undamaged.
Step-by-Step Instructions for Replacing Cooler Hinges

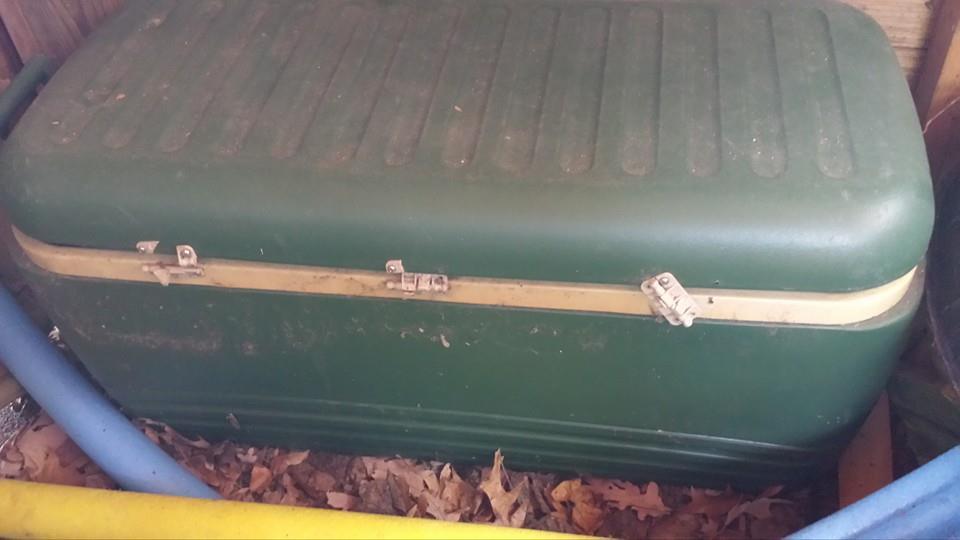

Before removing anything, examine the hinges on the back of your cooler. Check for cracks, missing pieces, loose screws and damage to the plastic surrounding the mounting holes.
Measure the distance between mounting-hole centers and compare the existing hinge configuration with the replacement kit. Confirm that the hinge geometry will allow the lid to open and close correctly.
Place the cooler on a stable, flat surface. Support the lid while removing the old hinges so it doesn't fall or twist.
Using the appropriate screwdriver, carefully remove the screws attaching the hinges to the cooler body and lid. If the screws are corroded or difficult to remove, apply gentle, controlled pressure to avoid stripping the screw heads or damaging the cooler.
Step 3: Clean and Inspect the Mounting Areas
Once the old hinges have been removed, wipe down the mounting surfaces to remove dirt, salt residue and debris.
Inspect the screw holes for stripped threads or cracks. If the mounting points are damaged, they may need a suitable repair before the new hinges can be installed securely.
Place each replacement hinge against the cooler's existing mounting locations.
Align the hinge holes with the holes in the lid and cooler body. Make sure the hinges are oriented correctly and sit flat against the mounting surfaces.
Avoid drilling additional holes unless the specific replacement hinge instructions require it.
Step 5: Install the New Hinges
Start the mounting screws by hand to avoid cross-threading. Leave them slightly loose until both hinges are positioned correctly.
Check that the cooler lid is centered and properly aligned with the cooler body. Then tighten the screws evenly until the hinges are secure.
Do not overtighten. Excessive force can strip plastic mounting holes or crack the cooler housing.
Step 6: Test the Cooler Lid
Slowly open and close the cooler several times to confirm that the new hinges operate smoothly.
Check that the lid remains properly aligned, closes fully and doesn't bind during operation.
If the lid shifts or the hinges feel loose, recheck the screw tightness and mounting alignment before using the cooler.
Replacing Hinges on Different Cooler Brands
Although the general replacement procedure is similar, hinge designs can vary significantly between cooler manufacturers and individual models.

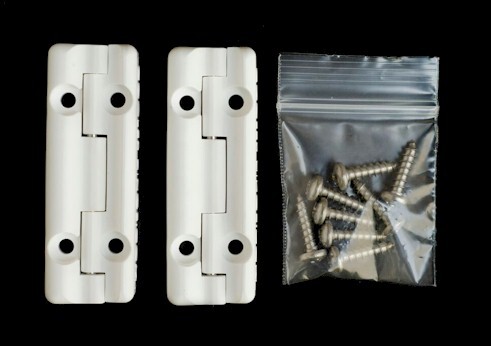

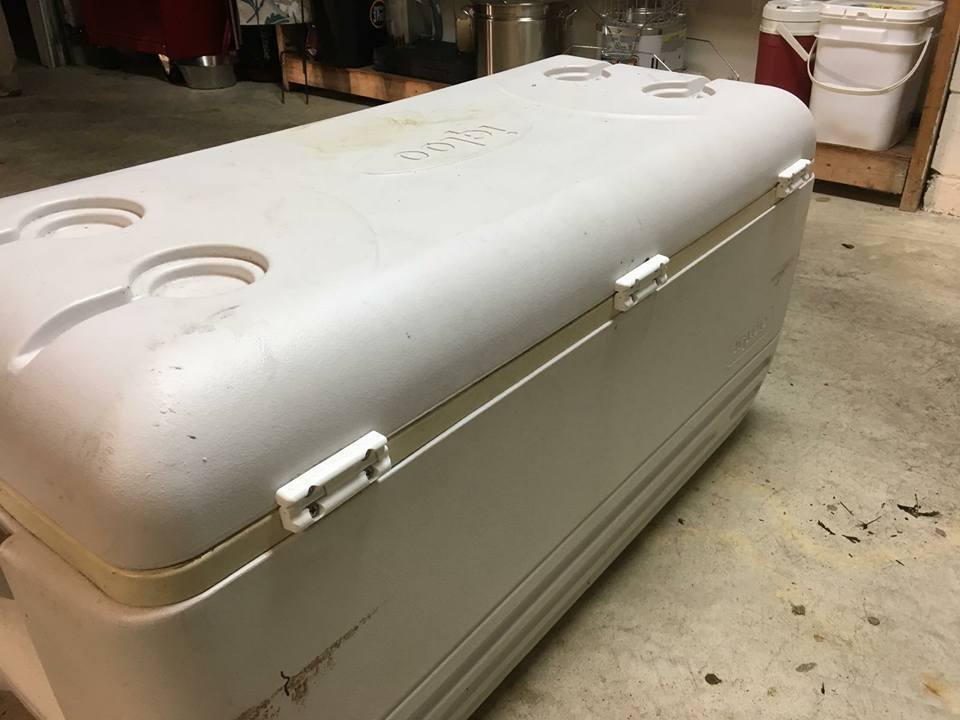

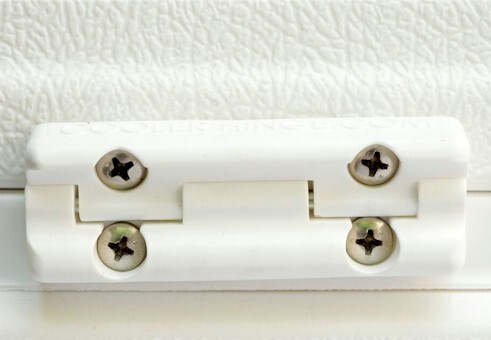

Igloo Cooler Hinge Replacement
Igloo coolers are widely used for recreational fishing, boating, camping and outdoor activities. Many traditional hard-sided models use externally mounted hinges that can be replaced when damaged.
When replacing Igloo cooler hinges, pay particular attention to screw-hole spacing and the shape of the original hinge. Different Igloo cooler families may use different hardware.
For compatible models, Cooler Shield replacement hinges can help restore normal lid operation without replacing the cooler itself.

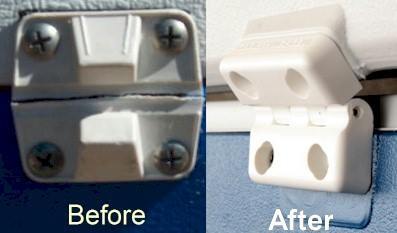

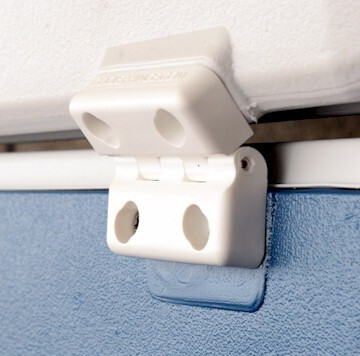

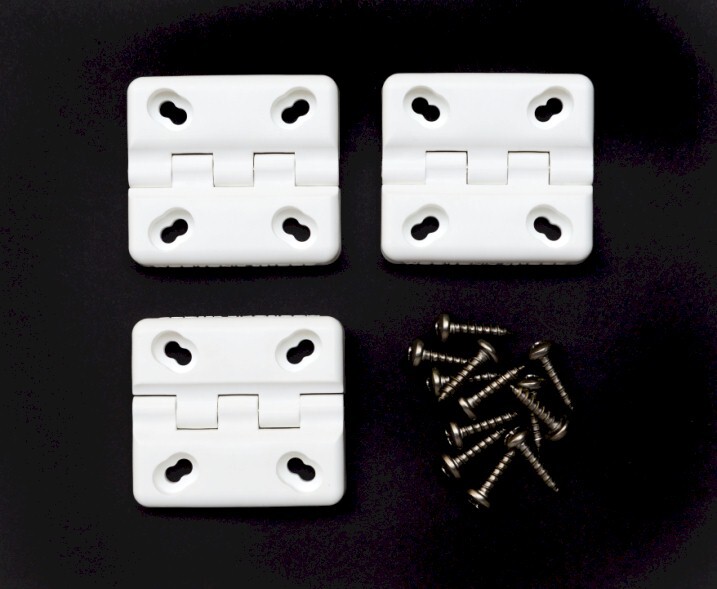

Coleman Cooler Hinge Replacement
Coleman manufactures a wide range of coolers used for camping, fishing, tailgating and outdoor recreation.
Some Coleman coolers feature externally mounted hinges, while others use different lid attachment systems.
Before purchasing replacement hinges, check the cooler model and confirm that the Cooler Shield hinges match the original mounting pattern.
Once compatibility is established, follow the removal and installation procedure above.
Rubbermaid Cooler Hinge Replacement
Rubbermaid coolers are known for practical designs used for outdoor recreation, work sites and everyday activities.
Older Rubbermaid coolers may have plastic hinges that become brittle after years of exposure to sunlight and repeated use.
Replacing broken hinges can be an economical way to keep these coolers in service. Check the hinge dimensions and mounting-hole locations carefully, particularly on older or discontinued models.

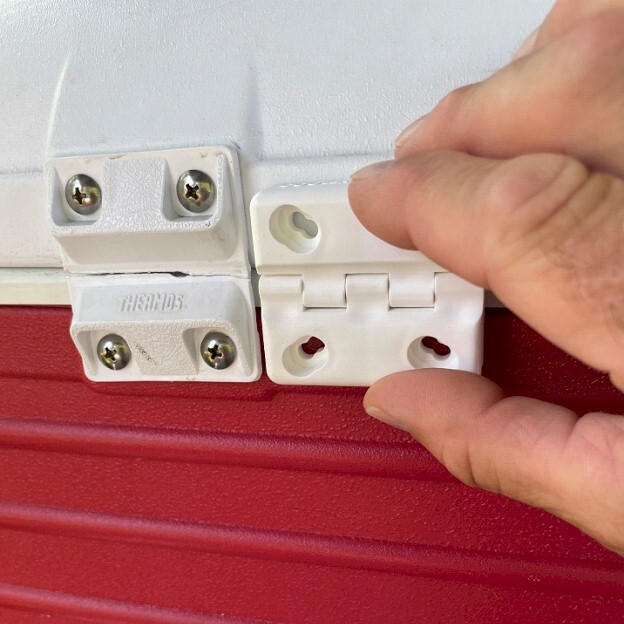

Thermos Cooler Hinge Replacement
Thermos has manufactured numerous styles of insulated coolers and ice chests.
Some older Thermos coolers may be difficult to repair using original manufacturer parts, making compatible aftermarket components worth investigating.
Compare the existing hinge dimensions with the Cooler Shield replacement hinge specifications before installation. A correct fit is essential for reliable operation.
Gott Cooler Hinge Replacement
Gott coolers have been popular among anglers, boaters and outdoor enthusiasts, and many older units remain in use.
Because some Gott cooler models are no longer manufactured, locating original replacement hardware can be challenging.
Cooler Shield replacement hinges may provide a useful repair option for compatible models. Carefully inspect the existing mounting points and verify the hinge fit before beginning the repair.
Click to see all the Cooler Shield Hinge Options
Common Cooler Hinge Replacement Problems
|
Problem |
Recommended solution |
|---|---|
|
Mounting holes don't line up |
Recheck hinge compatibility and model specifications |
|
Screws won't tighten |
Inspect for stripped mounting holes and use an appropriate repair method |
|
Lid closes unevenly |
Loosen hinges, realign the lid and retighten |
|
Hinges bind when opening |
Check orientation, spacing and hinge compatibility |
|
Screws are rusted |
Replace with suitable corrosion-resistant fasteners of the correct dimensions |
|
Plastic around hinge is cracked |
Repair or assess the mounting structure before installing new hinges |
Tips for Making Your Replacement Cooler Hinges Last Longer
Proper maintenance can help extend the life of replacement hinges, particularly in demanding saltwater environments.
Rinse your cooler after saltwater exposure. Salt residue can accumulate around hinge hardware. Rinse with fresh water and allow the cooler to dry.
Avoid forcing the lid backward. Never push the lid beyond the range permitted by its hinge design or lid-support system.
Check mounting screws periodically. Vibration from boats, trucks and trailers can loosen hardware over time.
Store coolers out of direct sunlight when possible. Reducing prolonged UV exposure can help preserve plastic components.
Use proper lid supports. If your cooler originally included a lid strap, stay or other opening limiter, make sure it remains functional. Replacement hinges should not be expected to act as lid stops unless specifically designed for that purpose.
Frequently Asked Questions About Cooler Shield Replacement Hinges
Can I replace cooler hinges myself?
Yes. On coolers with accessible, screw-mounted hinges, replacement is generally a straightforward DIY project requiring basic hand tools.
Will Cooler Shield replacement hinges fit every Igloo, Coleman, Rubbermaid, Thermos or Gott cooler?
No. Compatibility depends on the specific cooler model, hinge dimensions, mounting-hole spacing and replacement hinge design. Always check the product's fitment information.
Can I reuse the original mounting screws?
Often, yes, if they are in good condition and are compatible with the replacement hinges. Damaged or corroded screws should be replaced with appropriately sized fasteners.
What should I do if the cooler's screw holes are stripped?
Stripped holes need to be repaired using a method appropriate for the cooler's construction. Simply installing larger screws without checking wall thickness and internal components can cause additional damage.
Should I replace both hinges if only one is broken?
Replacing both hinges is often a good idea when the hinges are the same age and show similar wear. This can help maintain consistent alignment and avoid another repair shortly afterward.
Is replacing cooler hinges worth it?
In many cases, absolutely. If the cooler body, lid and insulation remain in good condition, replacing damaged hinges can be significantly less expensive than buying a new cooler.
Click to see all the Cooler Shield Hinge Options
Why Repair Your Cooler Instead of Replacing It?
A quality cooler can provide years of dependable service. Broken hinges are often a relatively minor problem compared with the cost of replacing an entire ice chest.
Replacing worn hinges offers several advantages, including lower replacement costs, less unnecessary waste and continued use of equipment that still performs well.
For anglers, maintaining existing coolers is especially practical. A cooler used for storing bait, drinks or the day's catch doesn't need to be replaced simply because a small piece of hardware has failed.
Keep Your Cooler Ready for the Next Fishing Trip
Whether you own an Igloo, Coleman, Rubbermaid, Thermos or Gott cooler, a broken hinge doesn't necessarily mean your cooler has reached the end of its useful life.
With the correct Cooler Shield replacement hinges, basic tools and a few minutes of work, you can restore proper lid operation and keep your cooler working for many more fishing trips, camping adventures and days on the water.
Before ordering, verify that the Cooler Shield replacement hinge kit is compatible with your specific cooler model. Proper fit and installation are the keys to a successful, long-lasting repair.
